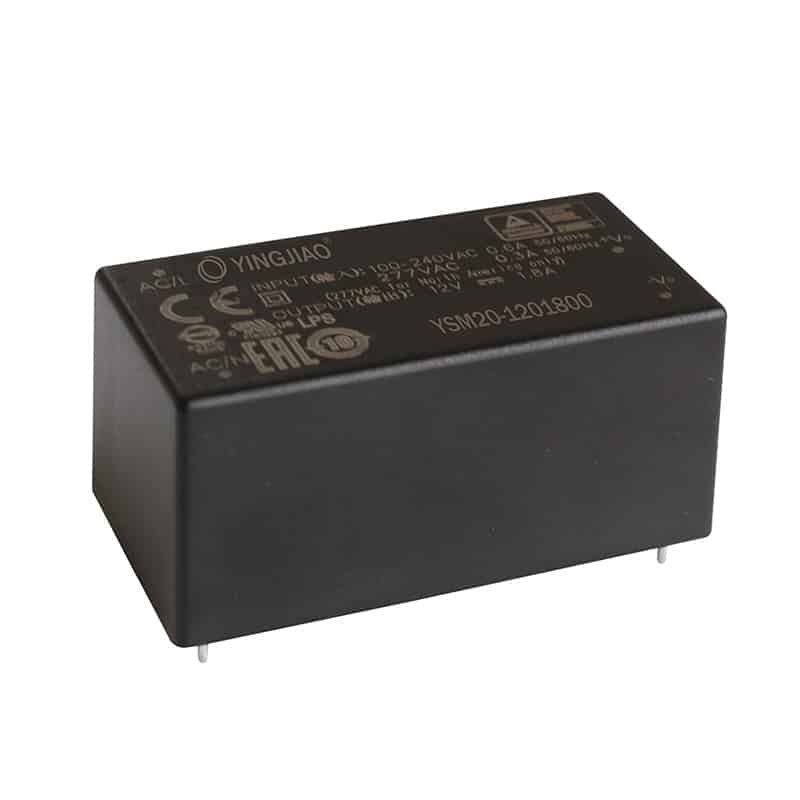

YSM20 20W Series
Rated Power: 20W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Class Ⅱ isolation level
Protection: Short Circuit, OCP, OVP
Output: 3.3-24V
Three Year Warranty
| Model No. | YSM20–0334500 | YSM20–0504000 | YSM20–1201800 | YSM20–1501400 | YSM20-2400900 |
| Dc voltage | 3.3V | 5V | 12V | 15V | 24V |
| Rated current | 4.5A | 4A | 1.8A | 1.4A | 0.9A |
| Rated power(Max) | 14.85W | 20W | 21.6W | 21W | 21.6W |
| Ripple ＆ Noise(Max) | 200mvp-p | 200mvp-p | 200mvp-p | 200mvp-p | 200mvp-p |
| Input voltage | 90 ~ 264VAC 50/60Hz | ||||
| Inrush current | Cold Start 25A/115VAC 45A/230VAC | ||||
| Effciency | 76% | 79% | 84% | 84% | 85% |
| working Temperature | -30~+70℃(Refer to “ Derating curve’“) | ||||
| withstand voltage | I/P-O/P:3KVAC | ||||
| protection | Short Circuit/Over Load/Over Voltage | ||||
| connection | I/P:2 pins , O/P:2 pins | ||||
