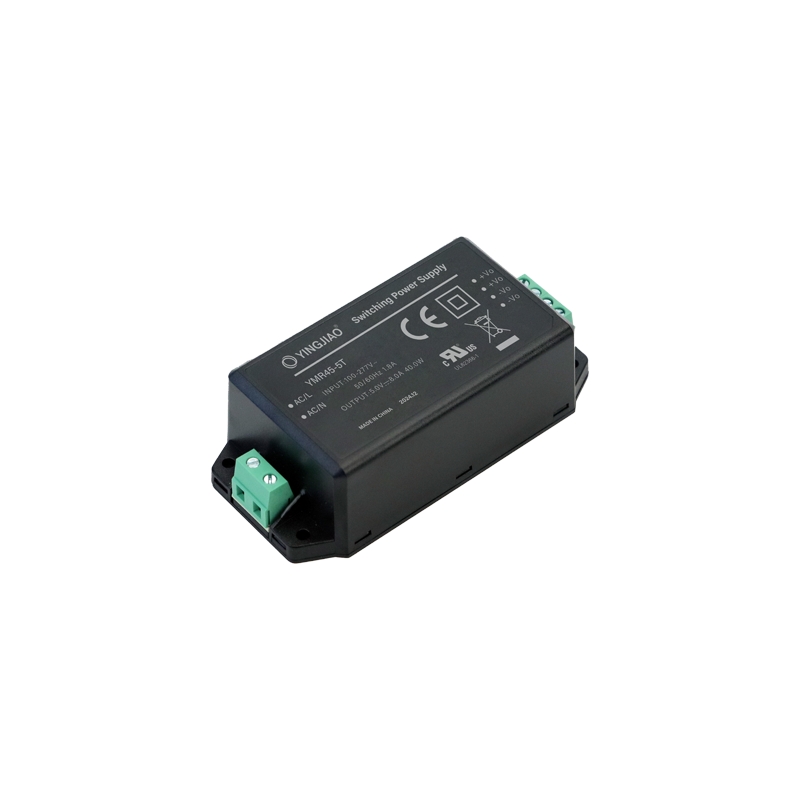

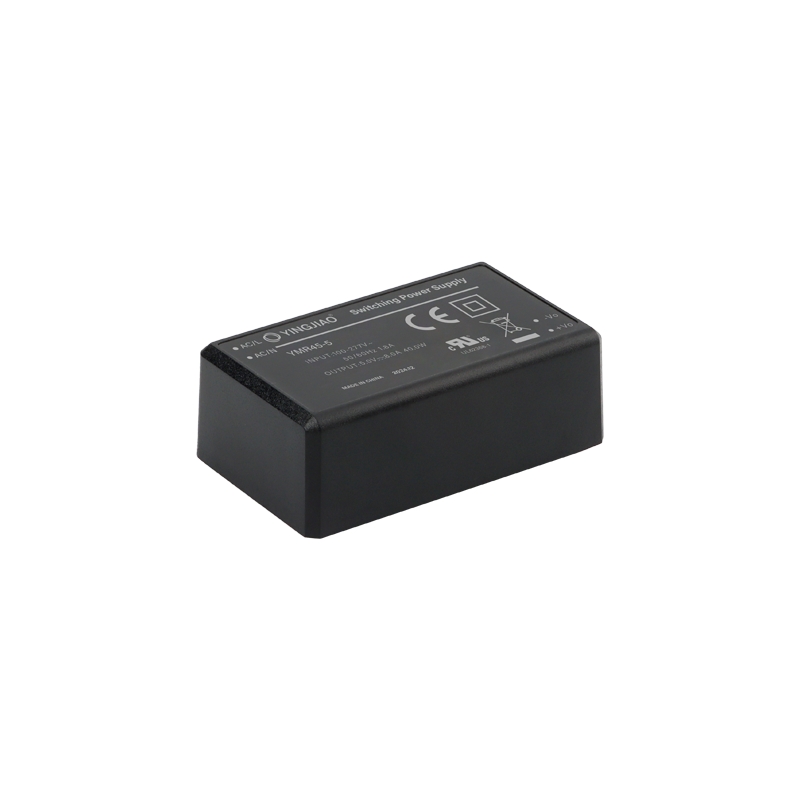

YMR45 Series
Universal AC Input/ Full Range
No load power consumption<0.15W
Wide operating temperature range -30~85 ℃
High efficiency up to 89.5%
Protections: Short circuit/Over load/Over voltage
lsolation Class ll
Three years warranty
| Model | Safety Model No. | YMR45-5□ | YMR45-12□ | YMR45-15□ | YMR45-24□ | YMR45-48□ |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 48V |
| Rated Current | 8A | 3.8A | 3A | 1.9A | 0.94A | |
| Rated Power | 40W | 45.6W | 45W | 45.6W | 45.12W | |
| Ripple & Noise(max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Voltage Tolerance | ± 2.5% | ± 2.5% | ± 2.5% | ± 2.5% | ± 2.5% | |
| Line Regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Load Regulation | ± 1.0% | ± 1.0% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Max.Capactive Load | 6000uF | 4400uF | 3300uF | 700uF | 470uF | |
| Setup,Rise,Hold up Time | 0.2s,35ms,50ms/230VAC(at full load) 0.2s,35ms,5ms/115VAC(at full load) | |||||
| Input | Rated Voltage Range | 100-277VAC | ||||
| Voltage Range | 85-305VAC/120-430VDC | |||||
| Frequency Range | 47-63Hz | |||||
| AC Current | 1.8A/115VAC 0.9A/230VAC 0.75A/277VAC | |||||
| Inrush Current | Cold Start 60A/600us at 230VAC 50Hz Cold Start 30A/600us at 115VAC 50Hz | |||||
| Leakage Current | <0.25mA/277VAC | |||||
| Efficiency | 83.5% | 87.5% | 88% | 89.5% | 89.5% | |
| No Load Power Consumption | <0.15W | |||||
