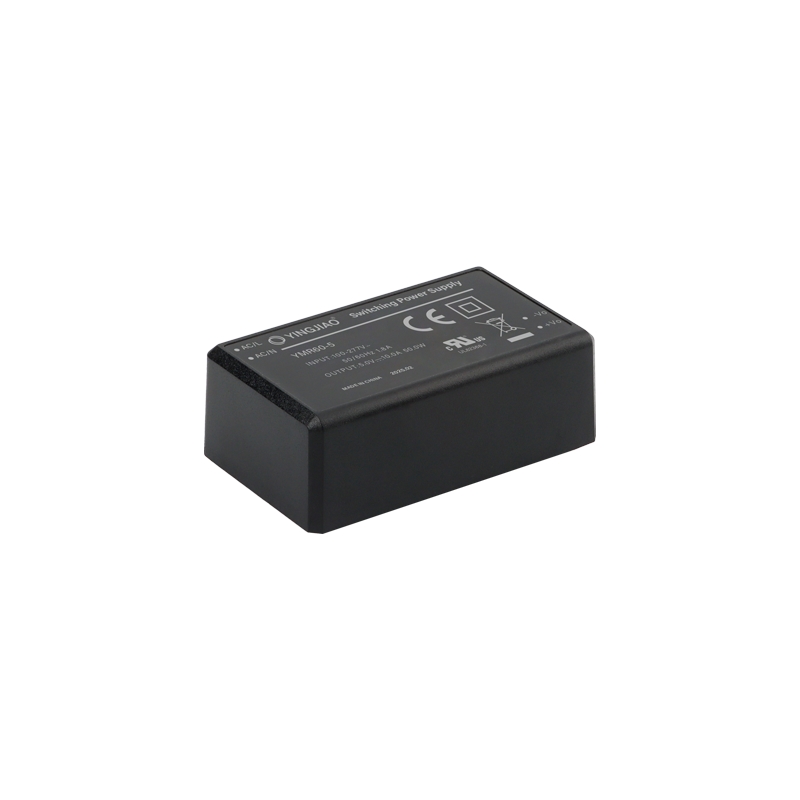

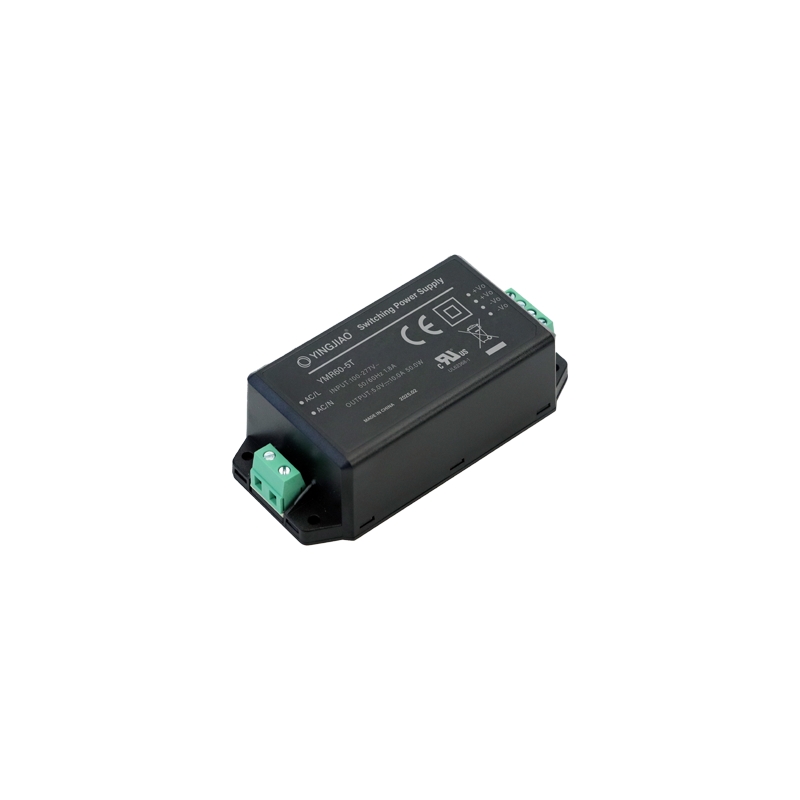

YMR60 60W Series
Universal AC Input/ Full Range
No load power consumption<0.15W
Wide operating temperature range -30~85℃
High efficiency up to 91%
Protections: Short circuit/Over load/Over voltage
lsolation Class ll
Three years warranty
| Model | Safety Model No. | YMR60-5□ | YMR60-12□ | YMR60-15□ | YMR60-24□ | YMR60-48□ |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 48V |
| Rated Current | 10A | 5A | 4A | 2.5A | 1.25A | |
| Rated Power | 50W | 60W | 60W | 60W | 60W | |
| Ripple & Noise(max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Voltage Tolerance | ± 2.5% | ± 2.5% | ± 2.5% | ± 2.5% | ± 2.5% | |
| Line Regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Load Regulation | ± 1.0% | ± 1.0% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Max.Capactive Load | 20000uF | 8000uF | 5000uF | 4200uF | 800uF | |
| Setup,Rise,Hold up Time | 0.2s,35ms,50ms/230VAC(at full load) 0.3s,35ms,12ms/115VAC(at full load) | |||||
| Input | Rated Voltage Range | 100-277VAC | ||||
| Voltage Range | 85-305VAC/120-430VDC | |||||
| Frequency Range | 47-63Hz | |||||
| AC Current | 1.8A/115VAC 1.0A/230VAC 0.8A/277VAC | |||||
| Inrush Current | Cold Start 65A/2000us at 230VAC 50Hz Cold Start 30A/2000us at 115VAC 50Hz | |||||
| Leakage Current | <0.25mA/277VAC | |||||
| Efficiency | 83% | 88% | 88% | 89.5% | 91% | |
| No Load Power Consumption | <0.15W | |||||
