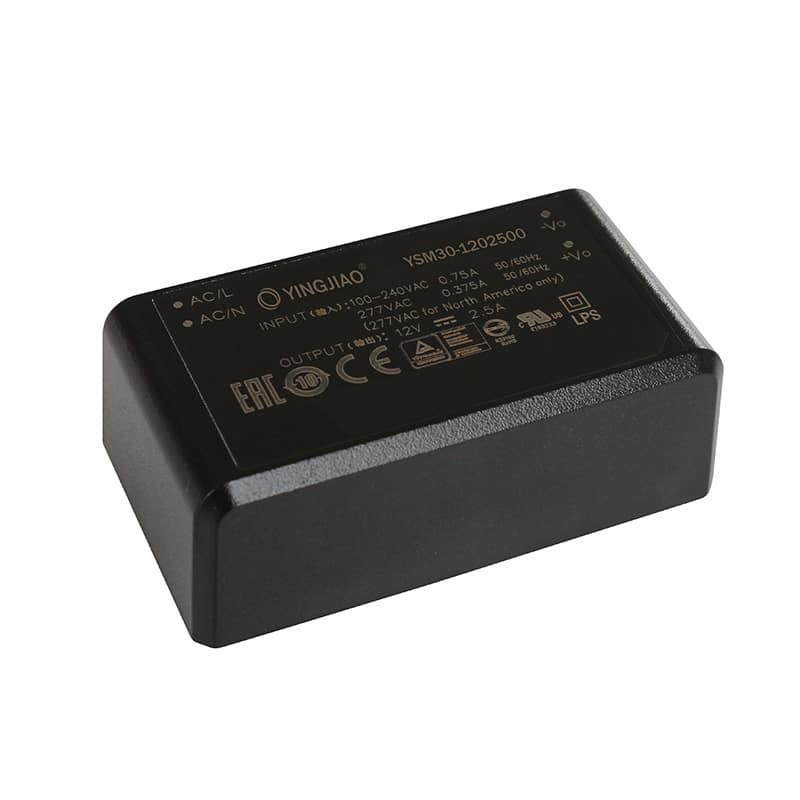

YSM30 Series
Rated Power: 30W
Input: 90-264VAC, 50 / 60Hz
Standby Power: ≤0.1W
Class Ⅱ isolation level
Protection: Short Circuit, OCP, OVP
Output: 5-48V
Three Year Warranty
| Model No. | YSM30□–0506000 | YSM30□–1202500 | YSM30□–1502000 | YSM30□-2401250 | YSM30□-4800630 |
| Dc voltage | 5V | 12V | 15V | 24V | 48V |
| Rated current | 6A | 2.5A | 2A | 1.25A | 0.63A |
| Rated power(Max) | 30W | 30W | 30W | 30W | 30W |
| Ripple & Noise(Max) | 120mvp-p | 150mvp-p | 200mvp-p | 240mvp-p | 300mvp-p |
| Input voltage | 90 ~ 264VAC 50/60Hz | ||||
| Inrush current | Cold Start 25A/115VAC 45A/230VAC | ||||
| Effciency | 83% | 88% | 88% | 88.5% | 90% |
| working Temperature | -30~+85℃(Refer to “ Derating curve’“) | ||||
| withstand voltage | I/P-O/P:4KVAC/1min | ||||
| protection | Short Circuit/Over Load/Over Voltage | ||||
| connection | I/P:2 pins ， O/P:2 pins | ||||
