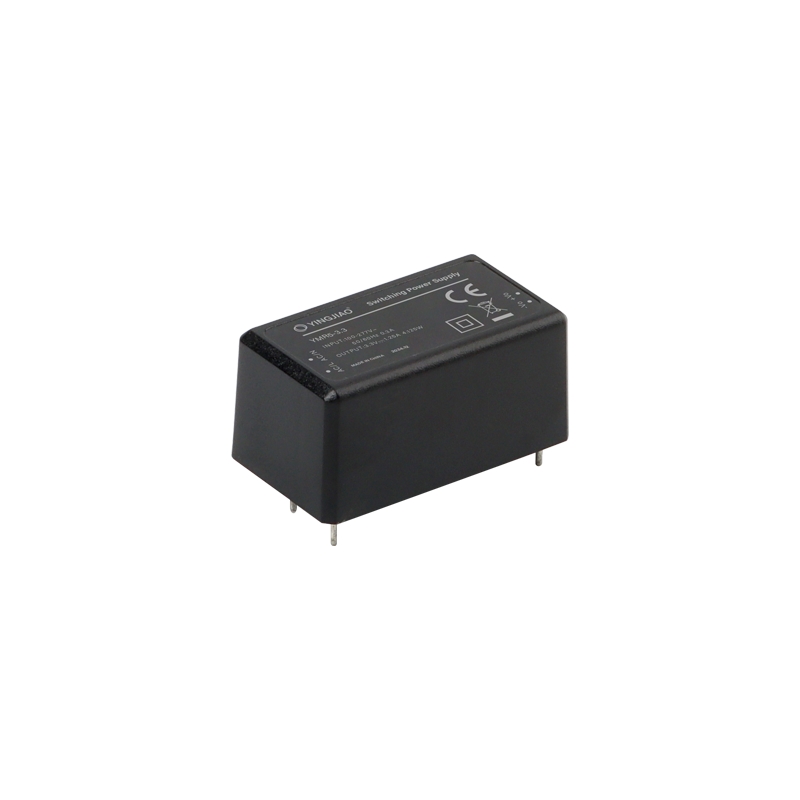

YMR5 5W Series
Universal AC Input/ Full Range
No load power consumption<0.1W
Wide operating temperature range -30~85 C
High efficiency up to 82.5%
Protections: Short circuit/Over load/Over voltage
lsolation Class ll
Three years warranty
| Model | Safety Model No. | YMR5-3.3 | YMR5-5 | YMR5-12 | YMR5-15 | YMR5-24 |
| Output | DC Voltage | 3.3V | 5V | 12V | 15V | 24V |
| Rated Current | 1.25A | 1A | 0.42A | 0.33A | 0.23A | |
| Rated Power | 4.125W | 5W | 5.04W | 4.95W | 5.52W | |
| Ripple & Noise(max.) | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| Voltage Tolerance | ± 2.5% | ± 2.5% | ± 2.5% | ± 2.5% | ± 2.5% | |
| Line Regulation | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.3% | ± 0.3% | |
| Load Regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Max.Capactive Load | 12000uF | 8500uF | 1600uF | 960uF | 500uF | |
| Setup,Rise,Hold up Time | 1.2s,30ms,80ms/230VAC(at full load) 1.4s,30ms,12ms/115VAC(at full load) | |||||
| Input | Rated Voltage Range | 100-277VAC | ||||
| Voltage Range | 85-305VAC/120-430VDC | |||||
| Frequency Range | 47-440Hz | |||||
| AC Current | 0.3A/115VAC 0.1A/230VAC 0.08A/277VAC | |||||
| Inrush Current | Cold Start 40A/800us at 230VAC 50Hz Cold Start 20A/800us at 115VAC 50Hz | |||||
| Leakage Current | <0.707mA/277VAC | |||||
| Efficiency | 74% | 78% | 80.5% | 82.5% | 81% | |
| No Load Power Consumption | <0.1W | |||||
