YSM90 Series
Rated Power: 90W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.21W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 12-24V

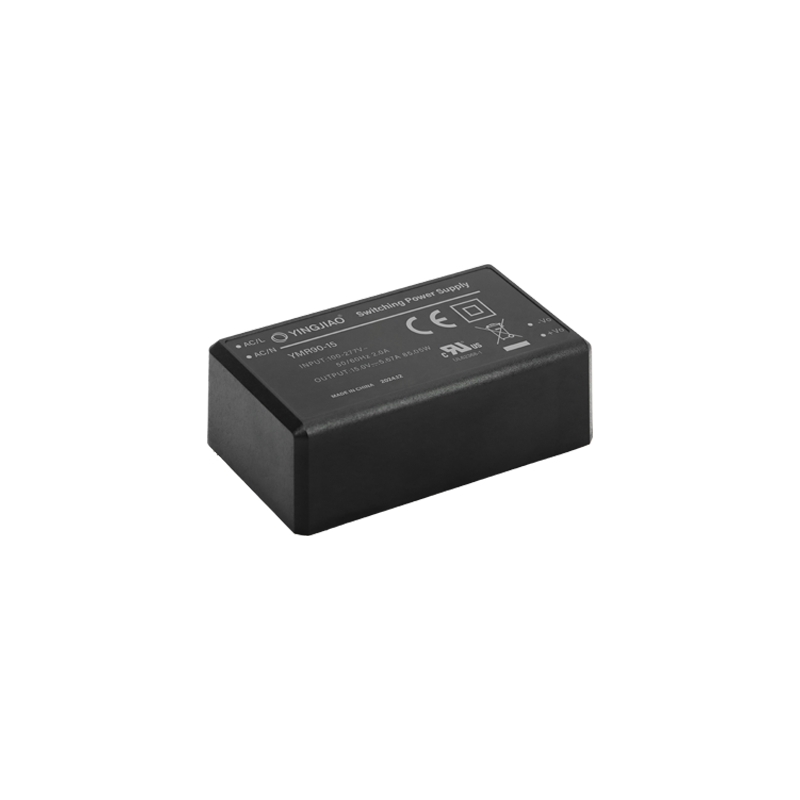

90W AC DC Power Module

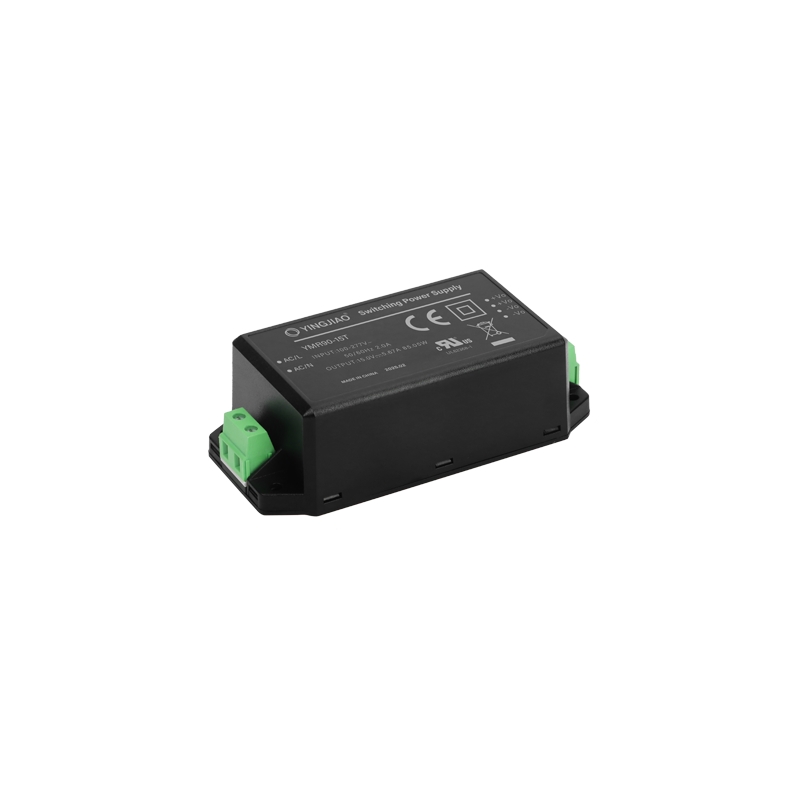

YSM90T
Menu
YSM90 Series
Rated Power: 90W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.21W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 12-24V
| Model : | YSM90-1207500 | YSM90-1506000 | YSM60-2403750 | YSM60-4801875 | |
| OUTPUT | DC voltage: | 12V | 15V | 24V | 48V |
| Rated
current: |
7.5A | 6A | 3.75A | 1.875A | |
| Rated Power: | 90W | 90W | 90W | 90W | |
| Ripple and Noise: | 120mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| Line Regulation: | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation: | ±1% | ±0.5% | ±0.5% | ±0.5% | |
| INPUT | Input voltage: | 85-305VAC 50/60Hz | |||
| Efficiency: | 92% | 92.5% | 93% | 93% | |
| AC Current: | 1.9A/115VAC 1.1A/230VAC 0.9A/277VAC | ||||
| Inrush Current: | COLD START 30A/115VAC 60A/230VAC | ||||
| Leakage Current: | <0.25mA/277VAC | ||||
| PROTECTION | Over Load Protection: | 115% ~ 160% rated output power,Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||
| Over Voltage Protection: | 115% ~ 135%,Protection Type: Clamp by zener diode | ||||
| SAFETY & EMC | Safety Regulations: | IEC62368-1,UL62368-1,TUV EN62368-1,EAC TPTC004-1，approved | |||
| Withstand Voltage: | I/P-O/P:3KVAC | ||||
| EMC emission: | EN55032(CISPR32), CNS13438,EN61000-3-2 Class A,EN61000-3-3 | ||||
| OTHER | MTBF: | ＞50000h | |||
| Size: | 87*52*29.5mm | ||||
