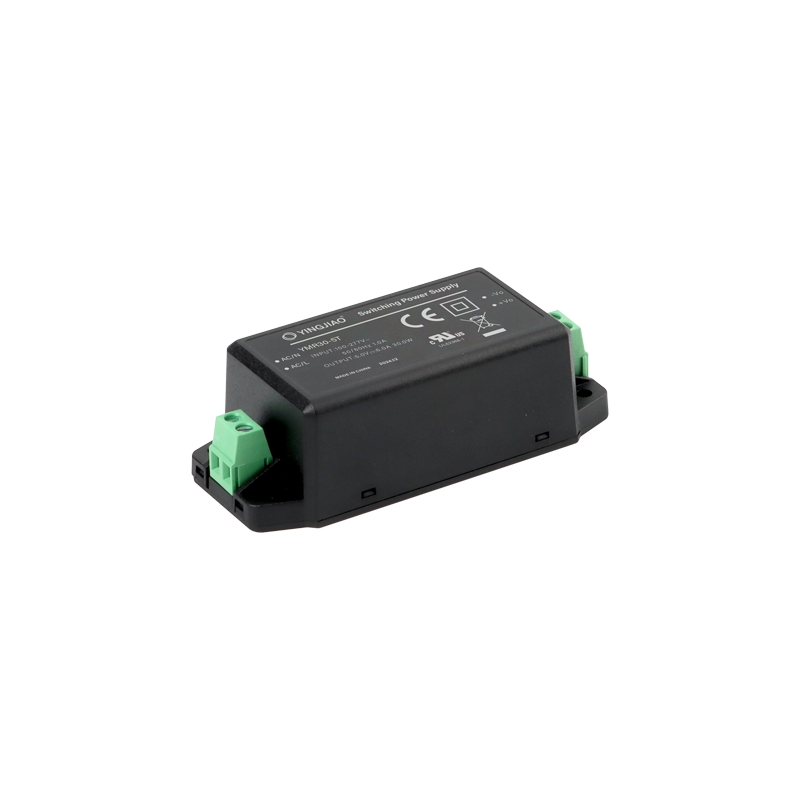

YMR30 Series
Universal AC Input/ Full Range
No load power consumption<0.1W
Wide operating temperature range -30~85 C
High efficiency up to 88%
Protections: Short circuit/Over load/Over voltage
lsolation Class ll
Three years warranty
| Model | Safety Model No. | YMR30-5□ | YMR30-12□ | YMR30-15□ | YMR30-24□ | YMR30-48□ |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 48V |
| Rated Current | 6A | 2.5A | 2A | 1.25A | 0.625A | |
| Rated Power | 30W | 30W | 30W | 30W | 30W | |
| Ripple & Noise(max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Voltage Tolerance | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% | ± 2.0% | |
| Line Regulation | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Load Regulation | ± 1.0% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| Max.Capactive Load | 6000uF | 4400uF | 3300uF | 700uF | 470uF | |
| Setup,Rise,Hold up Time | 1.5s,30ms,40ms/230VAC(at full load) 1.9s,30ms,10ms/115VAC(at full load) | |||||
| Input | Rated Voltage Range | 100-277VAC | ||||
| Voltage Range | 85-305VAC/120-430VDC | |||||
| Frequency Range | 47-63Hz | |||||
| AC Current | 1.0A/115VAC 0.5A/230VAC 0.3A/277VAC | |||||
| Inrush Current | Cold Start 45A/400us at 230VAC 50Hz Cold Start 25A/600us at 115VAC 50Hz | |||||
| Leakage Current | <0.25mA/277VAC | |||||
| Efficiency | 85% | 87% | 87% | 87% | 88% | |
| No Load Power Consumption | <0.1W | |||||
