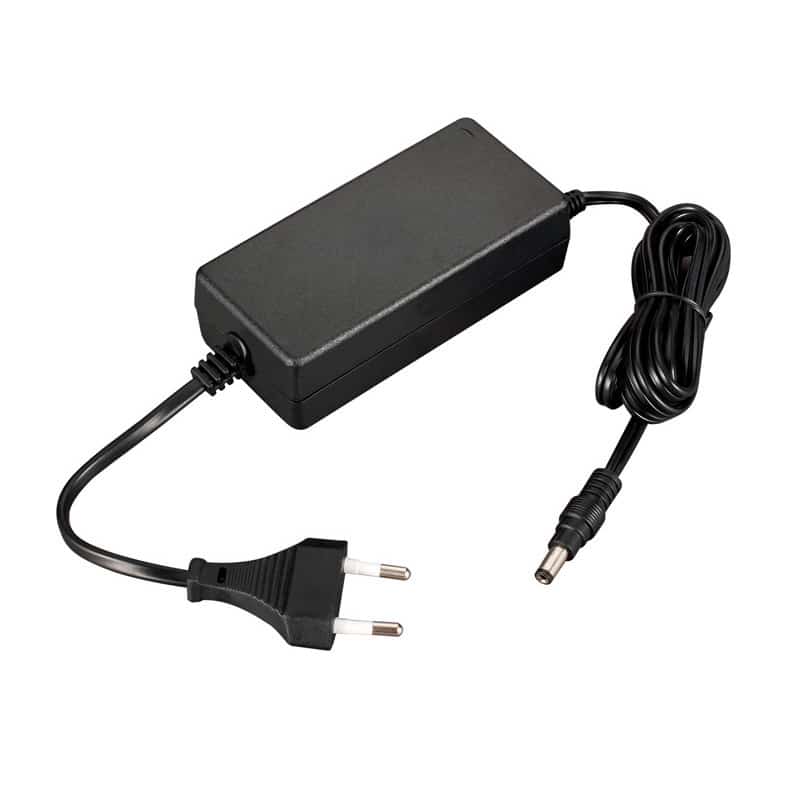

60W Desktop Type

YS50 Series

Power: 60W max

Input: 100-240VAC 50/60Hz

Output Voltage: 5-48V

Output Current: 0.1-5A max

Inrush Current:: 65 Amps max. at 230VAC/50Hz,full load



odel: YS50
Power: 60W max.
Input: 100-240VAC 50/60Hz
Output Voltage: 5-48V
Output Current: 0.1-5A
Input current: 1.5A max.
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
Leakage Current: 0.25mA Max. at 264VAC input
Energy Efficiency Level VI : CoC 5 / DoE 6 / CEC VI
No Load Power Consumption : <0.15W
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Working TEMP.: -20°C-50°C
Working Humidity: 5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:  EU,US,UK,AU etc. type according to customer’s choice
Certificates and approvals: UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION: Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2
Flicker Test : EN 61000-3-3
EMS IMMUNITY: ESD  Test:EN 61000-4-2
RS    Test:EN 61000-4-3
EFT   Test:EN 61000-4-4
Surge Test:EN 61000-4-5
CS     Test:EN 61000-4-6
DIP    Test:EN 61000-4-11
MTBF: 100000 hours minimum at full load at 25℃ ambient
Life: 3-5 years alternative
Dimension: 115.5*52*32.5mm
Weight: 260g
Packing: 50PCS/CTN,34*31*37cm
Model: YS50-0905000 YS50-1205000 YS50-1504000 YS50-1903160 YS50-2502500 YS50-4801250
DC Voltage: 9V 12V 15V 19V 25V 48V
Rated Current: 5A 5A 4A 3.16A 2.5A 1.25A
Current Range: 0-5A 0-5A 0-4A 0-3.16A 0-2.5A 0-1.25A
Rated Power: 45W 60W 60W 60W 62.5W 60W
Ripple & Noise(max.): 90mVp-p 120mVp-p 200mVp-p 200mVp-p 250mVp-p 300mVp-p
Voltage Tolerance: ±5% ±5% ±5% ±5% ±5% ±5%
Line Regulation: ±3% ±3% ±3% ±3% ±3% ±3%
Load Regulation: ±5% ±5% ±5% ±5% ±5% ±5%
Efficiency: 88.85% 89% 89% 89% 89% 89%
Setup,Rise,Hold up time: 1.5 second max./40 MS max./15 MS max. at 115VAC input and output max. load.
