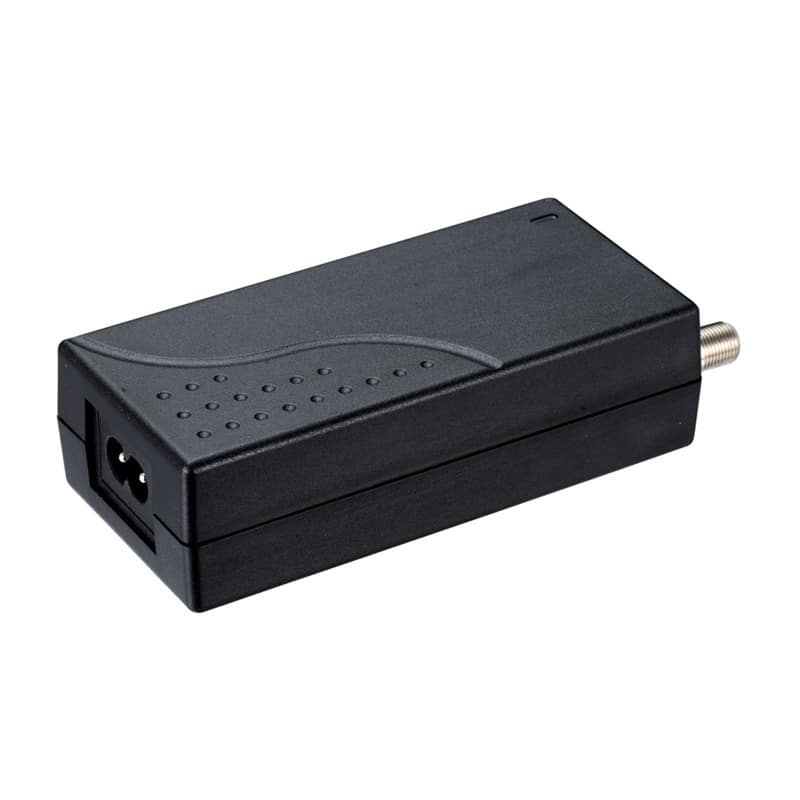

YS80 SERIES
Energy efficiency level Vl
3 Years Warranty
Universal AC input/Full range
No load power consumption < 0.21W
Protections: Short Circuit /Over Load /Over Voltage
-30~+70℃wide range working temperature
150W Desktop Type
YS120
YS80 SERIES
Energy efficiency level Vl
3 Years Warranty
Universal AC input/Full range
No load power consumption < 0.21W
Protections: Short Circuit /Over Load /Over Voltage
-30~+70℃wide range working temperature
| Model | Order P/N | YS80-1207500 –□-D1J |
YS80-1506000 –□-D1J |
YS80-2403750 –□-D1J |
YS80-3602500 –□-D1J |
| Safety Model No. | YS80-1207500 | YS80-1506000 | YS80-2403750 | YS80-3602500 | |
| Output | DC Voltage | 12V | 15V | 24V | 36V |
| Rated Current | 7.5A | 6A | 3.75A | 2.5A | |
| Rated Power | 90W | 90W | 90W | 90W | |
| Ripple & Noise(max.) | 100mVp-p | 150mVp-p | 200mVp-p | 300mVp-p | |
| Voltage Tolerance | ± 5% | ± 5% | ± 5% | ± 5% | |
| Line Regulation | ± 3% | ± 3% | ± 3% | ± 3% | |
| Load Regulation | ± 5% | ± 5% | ± 5% | ± 5% | |
| Setup,Rise,Hold up Time | 1.0s,40ms,30ms/230VAC(at full load) 1.5s,45ms,20ms/115VAC(at full load) | ||||
| Input | Rated Voltage Range | 100-240VAC | |||
| Voltage Range | 90-264VAC | ||||
| Frequency Range | 50/60Hz | ||||
| AC Current | 2.3A/115VAC 1.5A/230VAC | ||||
| Inrush Current | Cold Start 60A/200us at 230VAC 50Hz Cold Start 40A/200us at 115VAC 50Hz | ||||
| Leakage Current | <0.75mA/230VAC | ||||
| Efficiency | 89% | 89.5% | 89% | 91.5% | |
| No Load Power Consumption | <0.21W | ||||
