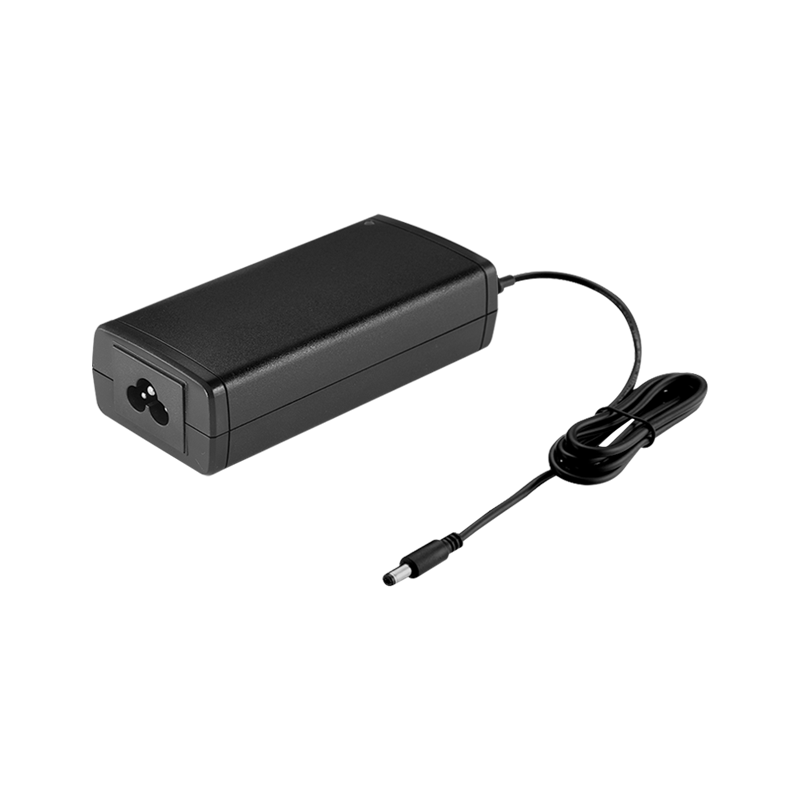

YS50 SERIES
Energy efficiency level Vl
3 Years Warranty
Universal AC input/Full range
No load power consumption < 0.21W
Protections: Short Circuit /Over Load /Over Voltage
-30~+70℃wide range working temperature
150W Desktop Type
YS120
YS50 SERIES
Energy efficiency level Vl
3 Years Warranty
Universal AC input/Full range
No load power consumption < 0.21W
Protections: Short Circuit /Over Load /Over Voltage
-30~+70℃wide range working temperature
| Model | Order P/N | YS50-0905000 –□-D1J |
YS50-1205000 –□-D1J |
YS50-1504000 –□-D1J |
YS50-2402500 –□-D1J |
YS50-3601660 –□-D1J * |
YS50-4801000 –□-D1J * |
| Safety Model No. | YS50-0905000 | YS50-1205000 | YS50-1504000 | YS50-2402500 | YS50-3601660 | YS50-4801000 | |
| Output | DC Voltage | 9V | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 5A | 5A | 4A | 2.5A | 1.66A | 1A | |
| Rated Power | 45W | 60W | 60W | 60W | 60W | 48W | |
| Ripple & Noise(max.) | 100mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 300mVp-p | 400mVp-p | |
| Voltage Tolerance | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | |
| Line Regulation | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% | |
| Load Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | |
| Setup,Rise,Hold up Time | 0.8s,30ms,80ms/230VAC(at full load) 2.0s,30ms,15ms/115VAC(at full load) | ||||||
| Input | Rated Voltage Range | 100-240VAC | |||||
| Voltage Range | 90-264VAC | ||||||
| Frequency Range | 50/60Hz | ||||||
| AC Current | 1.5A/115VAC 0.8A/230VAC | ||||||
| Inrush Current | Cold Start 60A/200us at 230VAC 50Hz Cold Start 40A/200us at 115VAC 50Hz | ||||||
| Leakage Current | <0.75mA/230VAC | ||||||
| Efficiency | 88% | 88% | 88.5% | 88.5% | 90% | 90.5% | |
| No Load Power Consumption | <0.21W | ||||||
