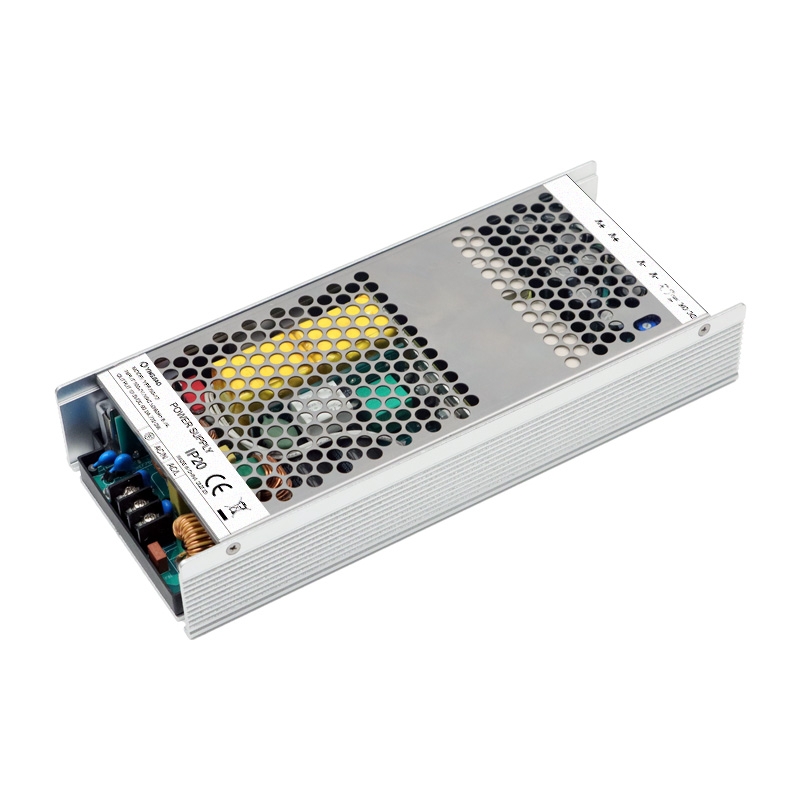

YEF50 Series
Universal AC input range
Cooling by free air convection
Built-in active PFC function
Protection:Short circuit/Overload/Over voltage/Over temperature
DC OK active signal and redundant function(option)
100% full load burn-in test
3 years warranty
| Model: | YEF750-12 | YEF750-24 | YEF750-36 | YEF750-48 |
| Output Voltage: | 12V | 24V | 36V | 48V |
| Output Current: | 60A | 31.3A | 20.9A | 15.7A |
| Rated Power: | 720W | 751.2W | 752.4W | 753.6W |
| Ripple and Noise: | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p |
| Input Voltage: | 90-264VAC 127-370VDC | |||
| Inrush Current: | 40A at 230VAC,20A at 115VAC | |||
| Rated Power: | 93.5% | 95% | 95% | 95% |
| Working TEMP: | -30°C-70°C (Refer to “Derating Curve”) | |||
| Protections： | Short Circuit /Over Current /Over Voltage/over temperature protection | |||
| Withstand voltage: | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |||
| Connection: | I/P:3 poles terminal block,O/P:4poles terminal block | |||
