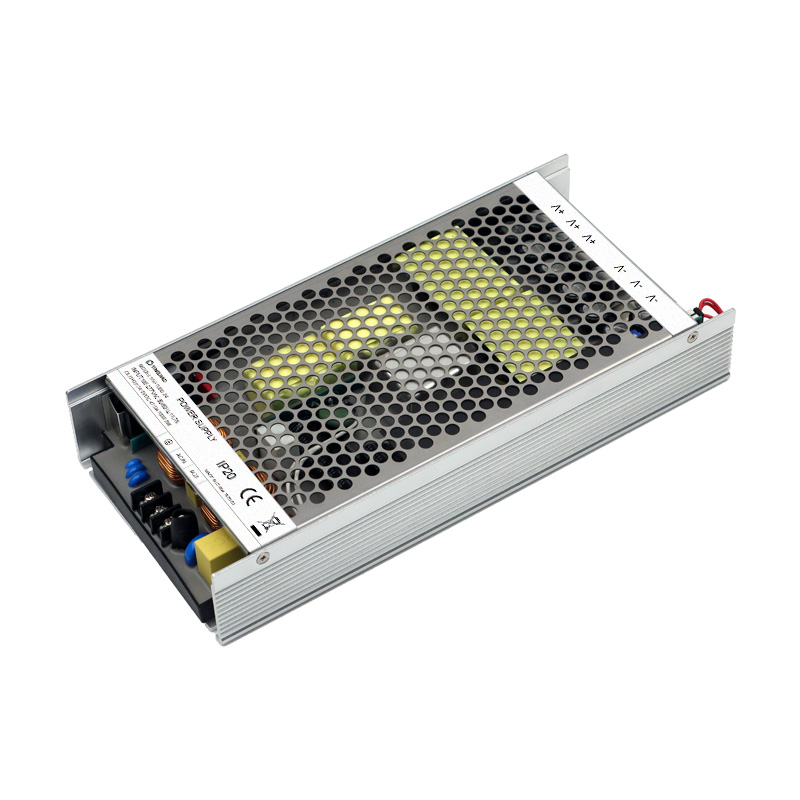

YEF1000 Series
Universal AC input/ Full Range
Built-in Active PFC Function
Fanless design,1000W convection
High efficiency up to 90%
DC OK active signal
Output voltage and constant current level programmable
Built-in remote ON-OFF control
Operating altitude up to 5000 meter
Protections: Short circuit/Over load/Over voltage/Over temperature
LED indicator for power on
Three years warranty
| Part number | DC Voltage |
Rated Current(max.) |
Rated Power |
Average Efficiency |
Ripple & Noise |
Max Capacitive Load |
Voltage ADJ Range |
| YEF1000-12□ | 12V | 80A | 960W | 94% | 150mVp-p | 40000uF | 12~14.4V |
| YEF1000-24□ | 24V | 42A | 1008W | 95% | 240mVp-p | 20000uF | 24~28.8V |
| YEF1000-36□ | 36V | 28A | 1008W | 95.5% | 240mVp-p | 16000uF | 36~43.2V |
| YEF1000-48□ | 48V | 21A | 1008W | 95% | 300mVp-p | 12000uF | 48~57.6V |
