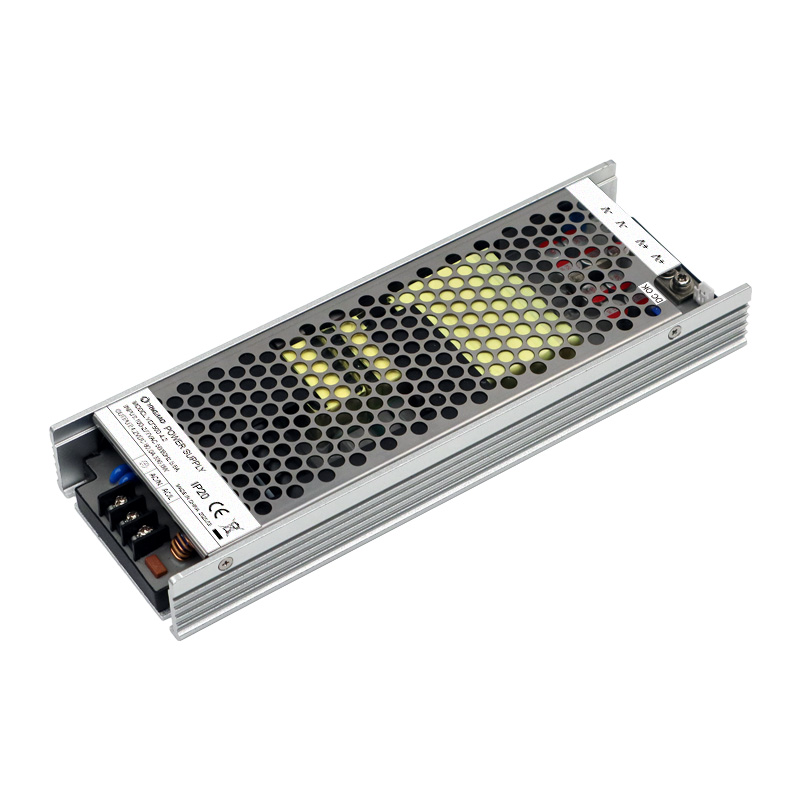

YEF500 Series
Universal AC input range
Cooling by free air convection
Built-in active PFC function
Protection:Short circuit/Overload/Over voltage/Over temperature
DC OK active signal and redundant function(option)
100% full load burn-in test
3 years warranty
| Model： | YEF500-5 | YEF500-12 | YEF500-15 | YEF500-24 | YEF500-36 | YEF500-48 | YEF500-48 |
| DC VOLTAGE: | 5V | 12V | 15V | 24V | 36V | 48V | 55V |
| Rated Current: | 80A | 41.7A | 33.4A | 20.9A | 13.9A | 10.45A | 8.9A |
| Rated Power(Max): | 400W | 500.4W | 501W | 501.6W | 500.4W | 501.6W | 489.5W |
| Ripple & Noise(Max): | 200mVp-p | 200mVp-p | 200mVp-p | 240mVp-p | 360mVp-p | 360mVp-p | 500mVp-p |
| Input Voltage: | 90 ~ 264VAC 127 ~ 430VDC | ||||||
| Inrush Current: | 60A at 230V AC/30A at 230V AC | ||||||
| Efficiency: | 90% | 94% | 94% | 94.50% | 95% | 95% | 95% |
| Working Temperature: | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||||
| Withstand Voltage: | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||
| Protection: | Short Circuit/Over Load/Over Voltage/Over Temperature | ||||||
| Connection: | I/P :3 poles terminal Block;0/P: 4 poles terminal Block | ||||||
