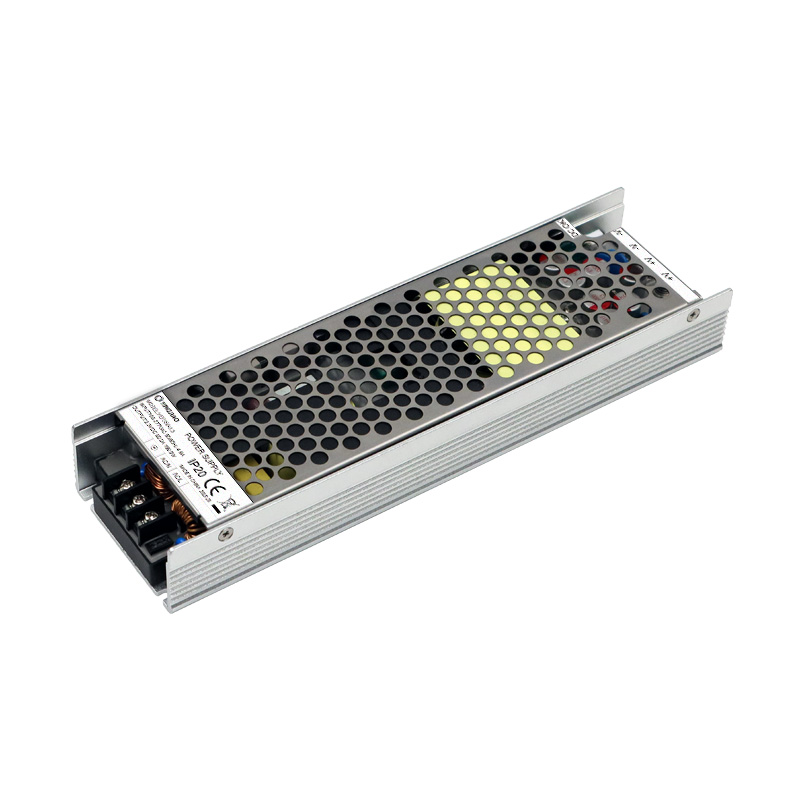

YEF350 Series
Universal AC input range
Cooling by free air convection
Built-in active PFC function
Protection:Short circuit/Overload/Over voltage/Over temperature
DC OK active signal and redundant function(option)
100% full load burn-in test
3 years warranty
| Model： | YEF350-5 | YEF350-12 | YEF350-15 | YEF350-24 | YEF350-36 | YEF350-48 | YEF350-55 |
| DC VOLTAGE: | 5V | 12V | 15V | 24V | 36V | 48V | 55V |
| Rated Current: | 60A | 29.2A | 23.4A | 14.6A | 9.75A | 7.3A | 6.3A |
| Rated Power(Max): | 300W | 350.4W | 351W | 350.4W | 351W | 350.4W | 346.5W |
| Ripple & Noise(Max): | 200mVp-p | 200mVp-p | 200mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 300mVp-p |
| Input Voltage: | 90 ~ 264VAC 127 ~ 430VDC | ||||||
| Inrush Current: | 60A at 230V AC/30A at 230V AC | ||||||
| Efficiency: | 90% | 91% | 92% | 94% | 94% | 94% | 94% |
| Working Temperature: | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||||
| Withstand Voltage: | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||
| Protection: | Short Circuit/Over Load/Over Voltage/Over Temperature | ||||||
| Connection: | I/P :3 poles terminal Block;0/P: 4 poles terminal Block | ||||||
