YEP150 Series
Universal AC input range
Built-in active PFC function
Free air convection design
Protection:Short circuit/Overload/Over voltage/Over temperature
Optional remote ON/OFF control
100% full load burn-in test
3 years warranty
Model: | YEP150-5 | YEP150-12 | YEP150-15 | YEP150-24 | YEP150-48 |
DC VOLTAGE: | 5V | 12V | 15V | 24V | 48V |
Rated Current: | 30A | 12.5A | 10A | 6.3A | 3.2A |
Rated Power(Max): | 150W | 150W | 150W | 151.2W | 153.6W |
Ripple & Noise(Max): | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 250mVp-p |
Input Voltage: | 90 ~ 264VAC 127 ~ 370VDC | ||||
Inrush Current: | 45A at 230V AC | ||||
Efficiency: | 87% | 90% | 88.5% | 89% | 90% |
Working Temperature: | -20 ~ +70℃ (Refer to “Derating Curve”) | ||||
Withstand Voltage: | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
Protection: | Short Circuit/Over Load/Over Voltage/Over Temperature | ||||

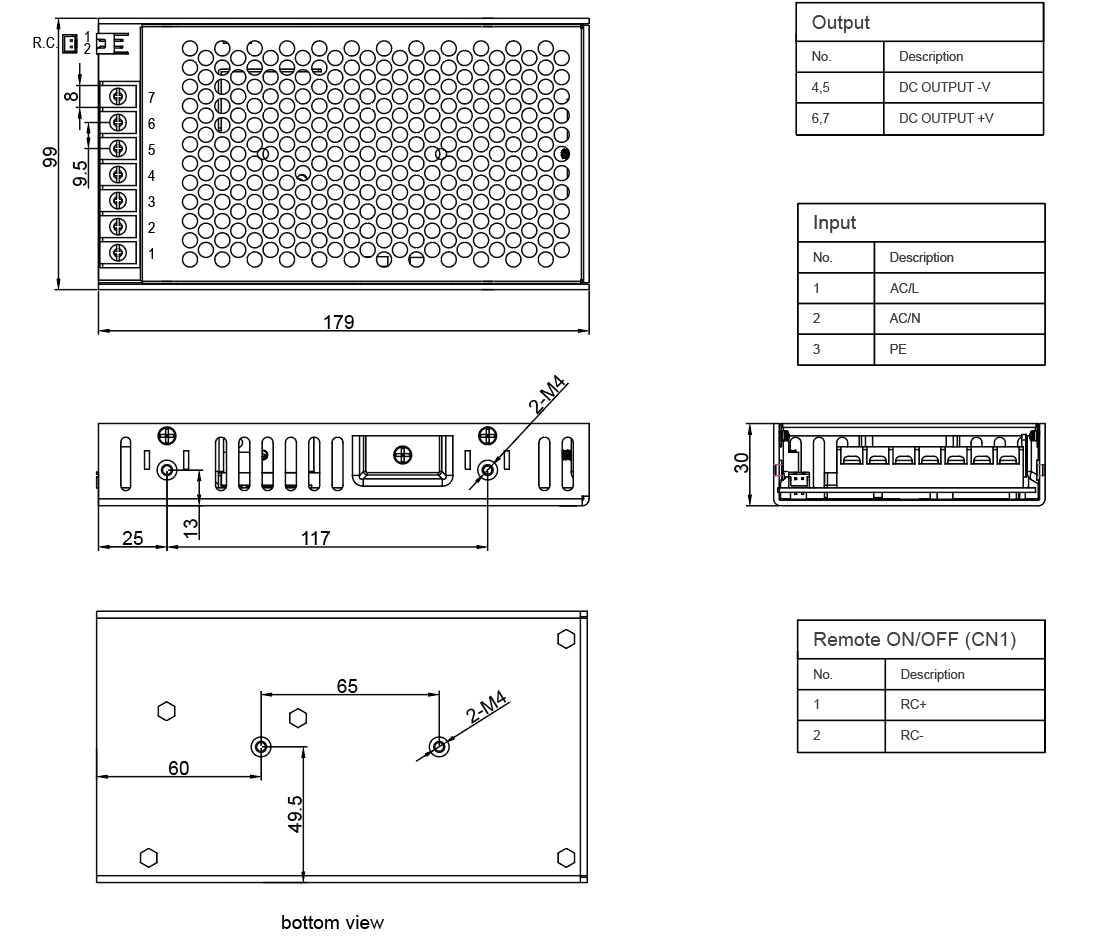

Connection: | terminal blocks |
