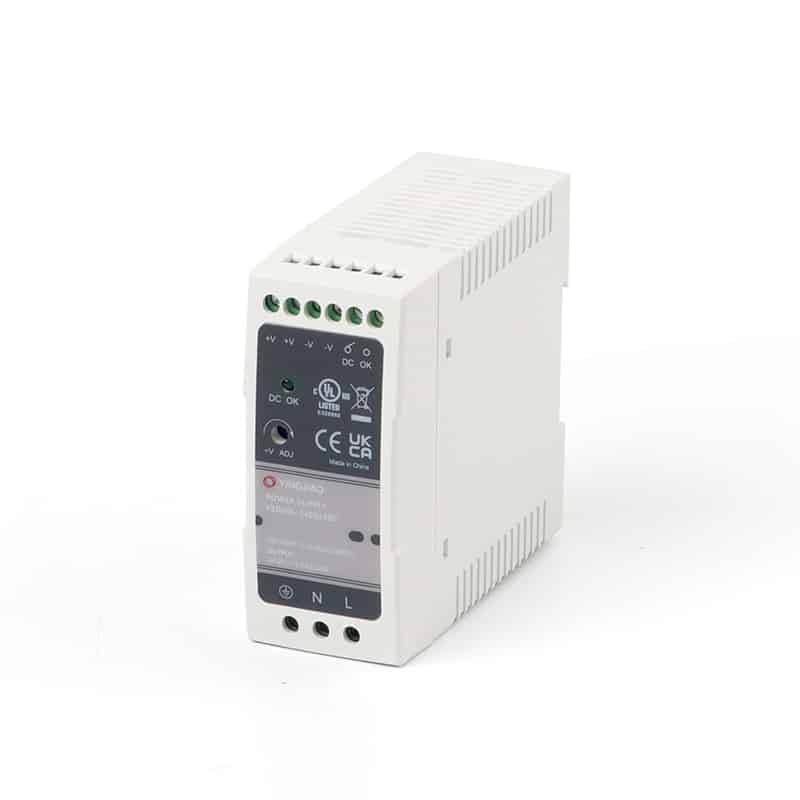

YSD60L 60W Series

Highlights&Features

  • Universal AC input range
  • Class 2/ Pass LPS
  • Built-in DC OK Relay contact
  • DC output voltage adjustable
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSD60L-05010000 YSD60L-12005000 YSD60L-24002500 YSD60L-480001250
Input Voltage 90-264VAC   127-370VDC
DC Voltage 5V 12V 24V 48V
Rated  Current 10A 5A 2.5A 1.25A
Rated  Power 50W 60W 60W 60W
Dimension 41*100*92mm/1.61*3.94*3.62in
