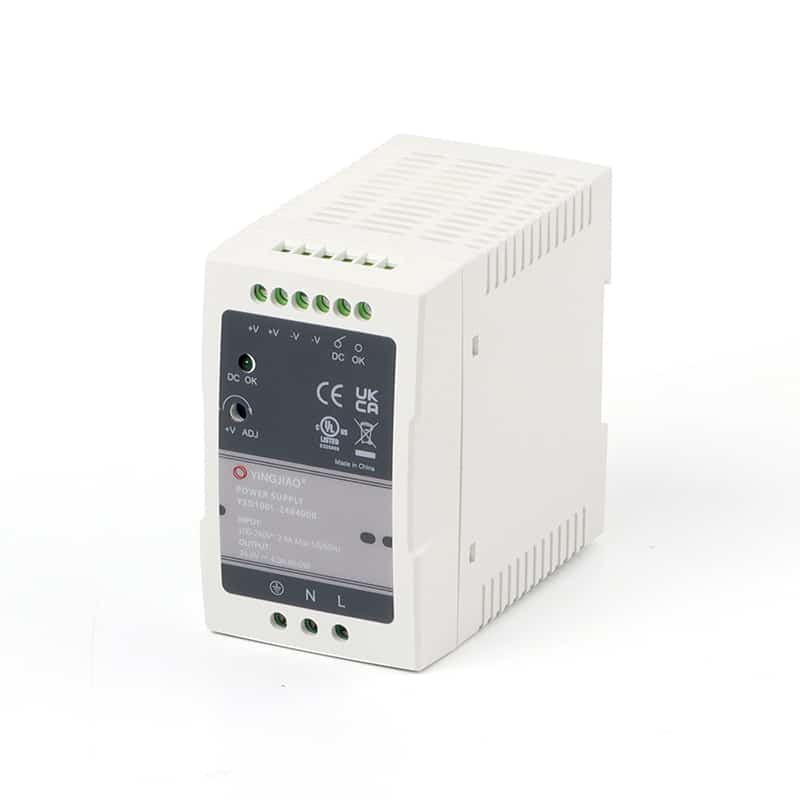

YSD100L Series

Highlights&Features

  • Universal AC input range
  • Built-in DC OK Relay contact
  • DC output voltage adjustable
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 years warranty

Contact Us →
Datasheet
MODEL NO. YSD100L-1207500 YSD100L-2404000 YSD100L-4802000
Input Voltage 90-264VAC   127-370VDC
DC Voltage 12V 24V 48V
Rated  Current 7.5A 4A 2A
Rated  Power 90W 96W 96W
Dimension 55*100*92mm/2.17*3.94*3.62in
