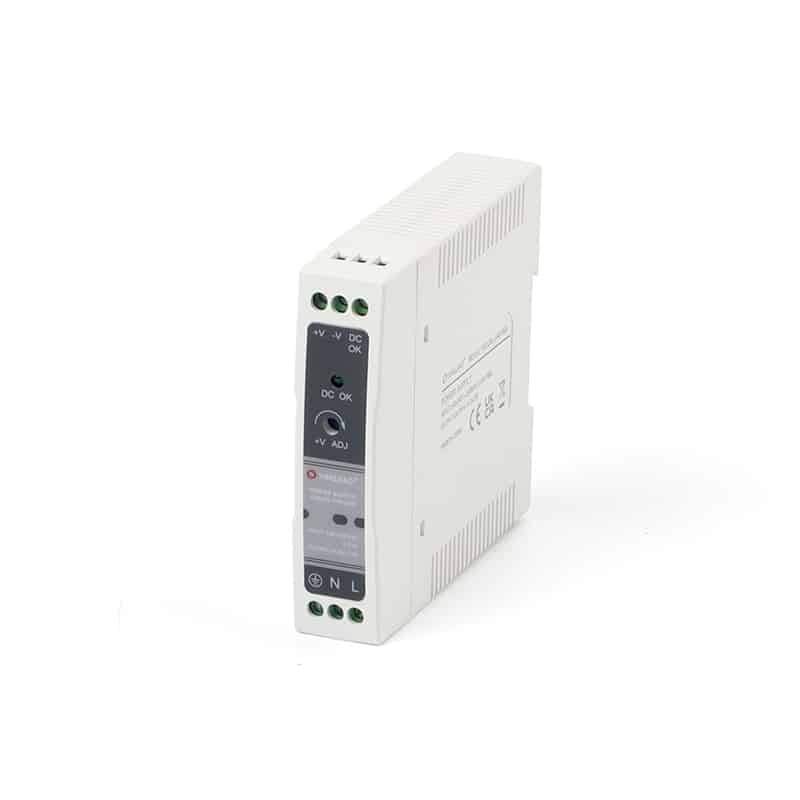

YSD20L 20W Series

Highlights&Features

  • Universal AC input range
  • Class 2/ Pass LPS
  • Built-in DC OK active signal
  • DC output voltage adjustable
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSD20L-0503000 YSD20L-1201670 YSD20L-1501340 YSD20L-2401000
Input Voltage 90-264VAC  127-370VDC
DC Voltage 5V 12V 15V 24V
Rated  Current 3A 1.67A 1.34A 1A
Rated  Power 15W 20W 20W 24W
Dimension 23*100*92mm(0.91*3.94*3.62in)
