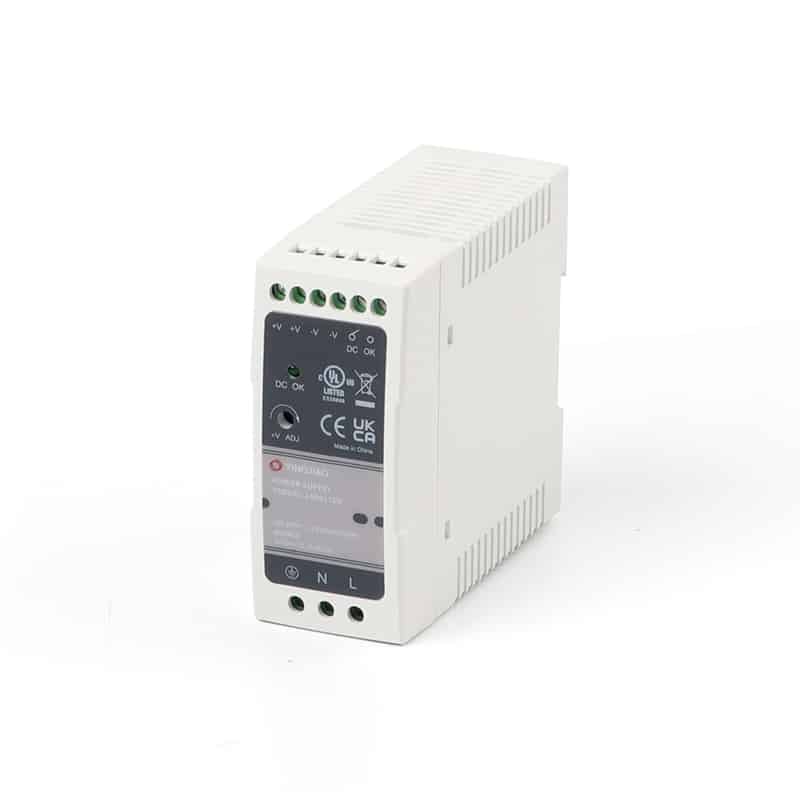

YSD60L 40W Series

Highlights&Features

  • Universal AC input range
  • Class 2/ Pass LPS
  • Built-in DC OK Relay contact
  • DC output voltage adjustable
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSD60L-05006000 YSD60L-12003330 YSD60L-24001700 YSD60L-48000830
Input Voltage 90-264VAC   127-370VDC
DC Voltage 5V 12V 24V 48V
Rated  Current 6A 3.33A 1.7A 0.83A
Rated  Power 30W 40W 40.8W 39.8W
Dimension 41*100*92mm/1.61*3.94*3.62in
