YS5M-E Series
Rated Power: 5W
Input: 100-240V AC, 50 / 60Hz
Standby Power: <0.1W
Protection: Short Circuit, OCP, OVP
Output: 5-36V
| Model： | YS5M-xxxyyyy |
| Power: | 5W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 5-36V |
| Output Current: | 0.2-1A |
| Input current: | 0.2A/230VAC |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | ＜0.1mA/240VAC |
| No Load Power Consumption ： | ＜0.1W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Shut down o/p voltage, re-power on to recover |
| Over Voltage Protection (OVP): |
>120% rated output powe |
| Over Current Protection (OCP): | Above 110-180% rated output power |
| Working TEMP.: | -20°C~+60°C |
| Working Humidity： | 20%-95% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | 10% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU 2pin |
| Certificates and approvals: | CE,RoHS,REACH |
| MTBF: | 100Khrs min. MIL-HDBK-217F(25℃) |
| Life: | 3 years alternative |

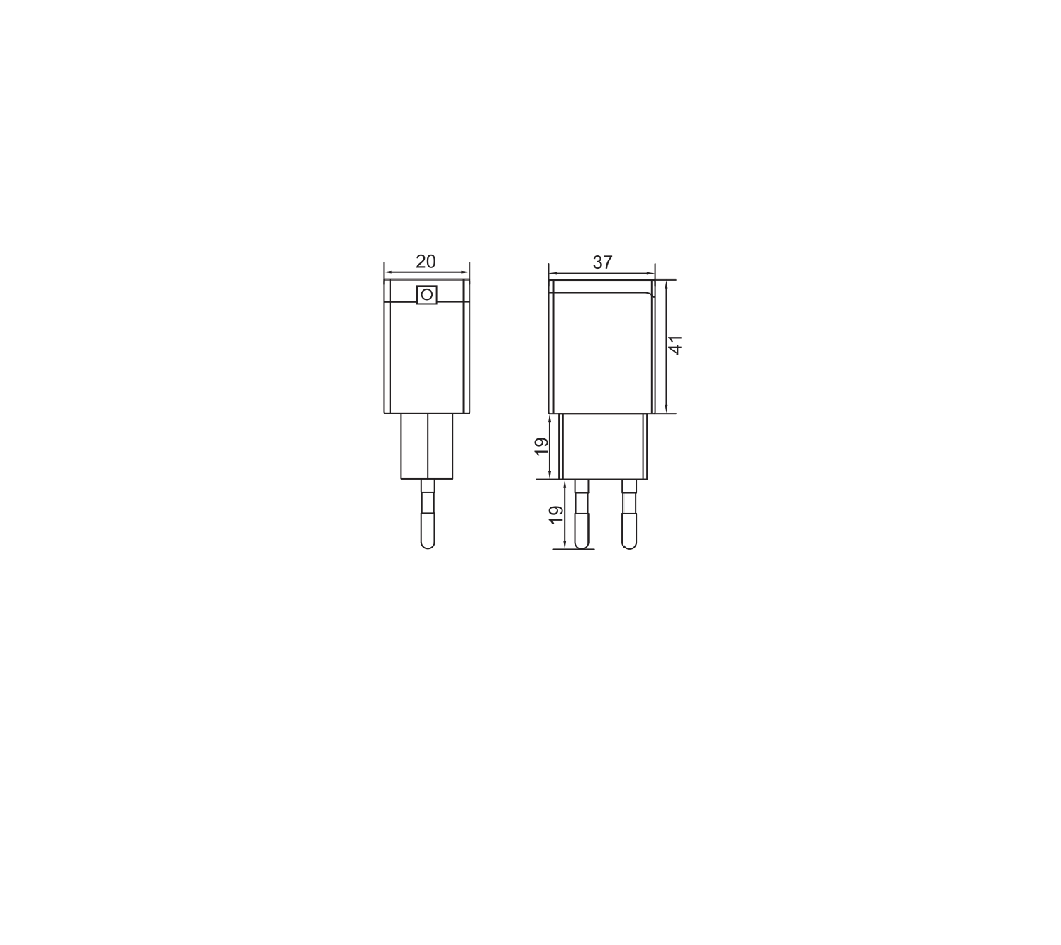

| Dimension: | 58*26*35mm |
| Weight: | 70g |
| Packing: | 100pcs/ctn |
| Model: | YS5M-0501000 | YS5M-0600830 | YS5M-0750660 | YS5M-0900550 | YS5M-1200410 | YS5M-2400200 |
| DC Voltage: | 5V | 6V | 7.5V | 9V | 12V | 24V |
| Rated Current: | 1A | 0.83A | 0.66A | 0.55A | 0.41A | 0.2A |
| Current Range: | 0-1A | 0-0.83A | 0-0.66A | 0-0.5A | 0-0.41A | 0-0.2A |
| Rated Power: | 5W | 5W | 5W | 5W | 5W | 4.8W |
| Ripple & Noise(max.): | 75mV P-P | 75mV P-P | 75mV P-P | 90mV P-P | 120mV P-P | 200mV P-P |
| Voltage Tolerance: | ±5% | |||||
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 75% | 75% | 75% | 78% | 79% | 79% |
| Setup,Rise,Hold up time: | 1000ms, 30ms/25ms 230VAC at full load | |||||
