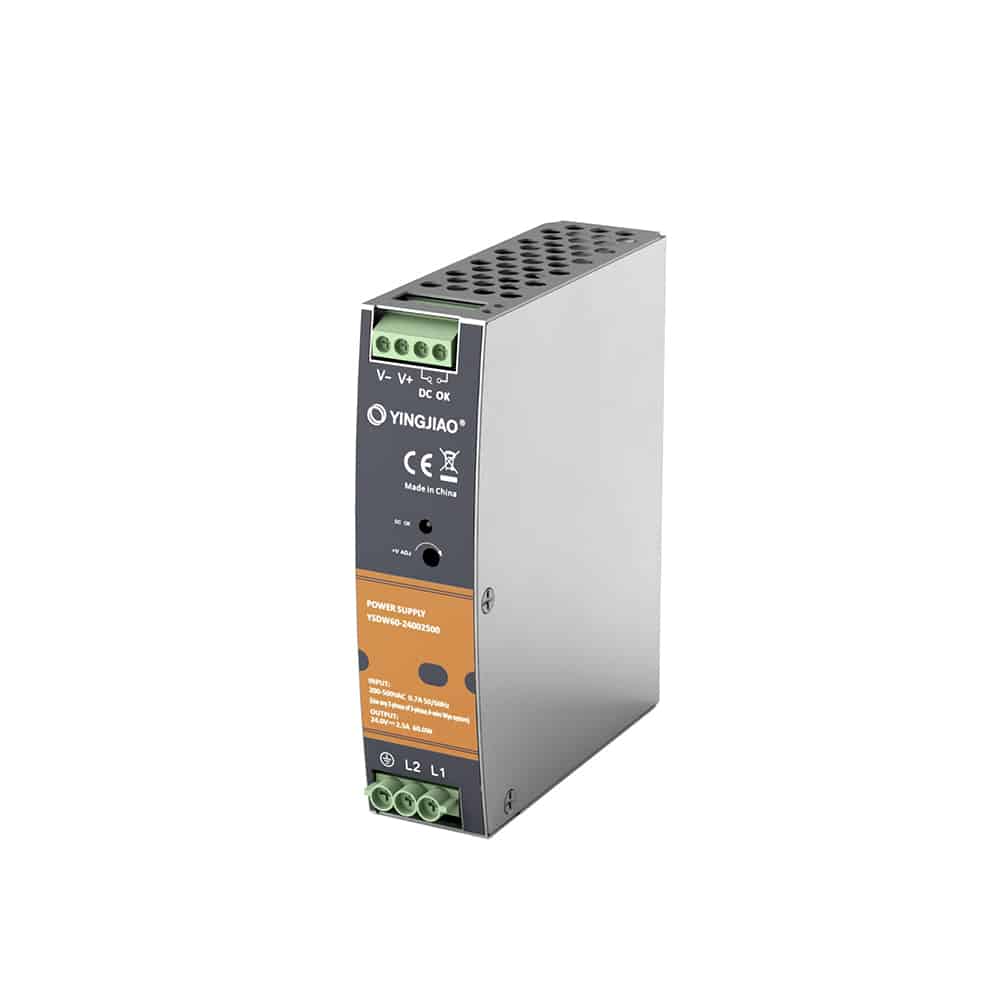

YSDW60 Series

Highlights&Features

  • Single and Two Phase Wide Input Range 180~550VAC
  • Built-in constant current limiting circuit
  • Over voltage category III
  • DC output voltage adjustable
  • Bulit-in DC OK relay contact
  • 3 years warranty





Contact Us →
Datasheet
MODEL NO. YSDW60-5 YSDW60-12 YSDW60-24 YSDW60-48
Input Voltage 180-550VAC  254-780VDC
DC Voltage 5V 12V 24V 48V
Rated  Current 10A 5A 2.5A 1.25A
Rated  Power 50W 60W 60W 60W
Dimension 32*125*100.5mm/1.26*4.92*3.96in
