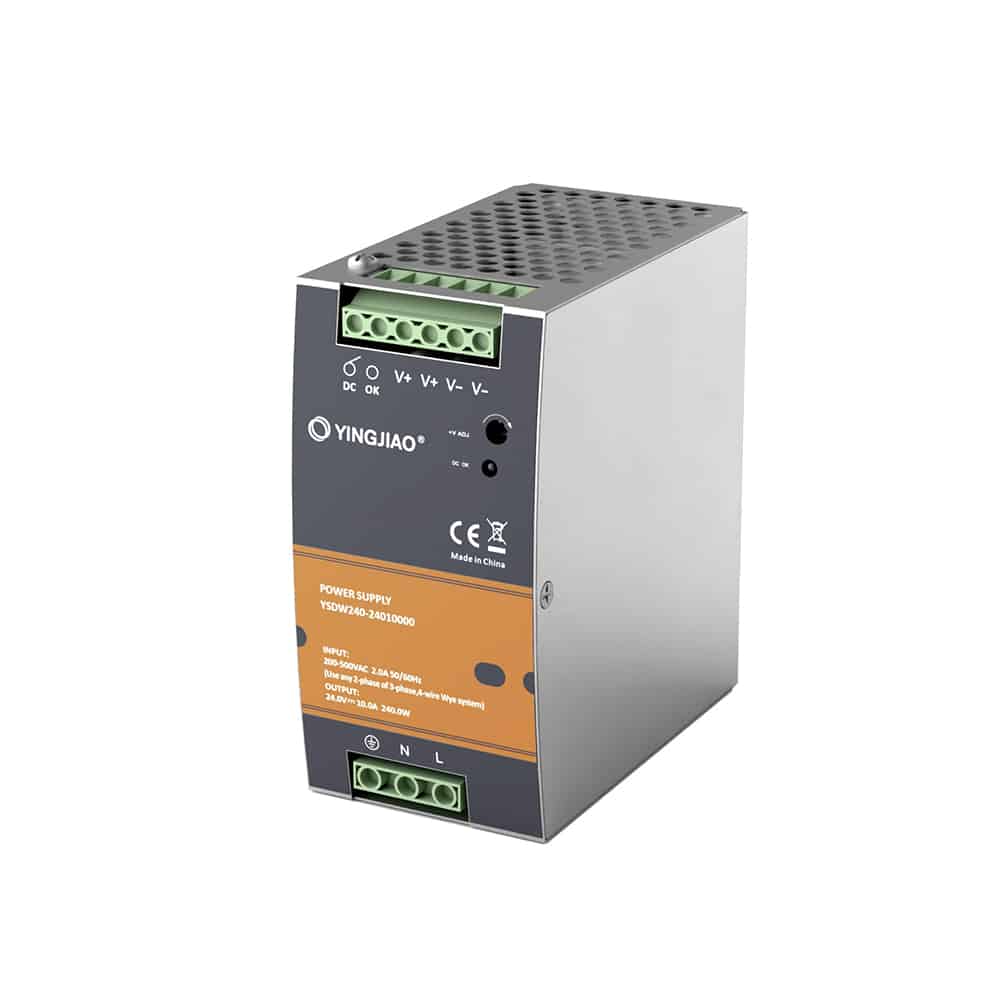

YSDW240 Series

Highlights&Features

  • Single and Two Phase Wide Input Range 180~550VAC
  • Built-in active PFC function
  • DC output voltage adjustable
  • Bulit-in DC OK relay contact
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSDW240-24 YSDW240-48
Input Voltage 180-550VAC  254-780VDC
DC Voltage 24V 48V
Rated  Current 10A 5A
Rated  Power 240W 240W
Dimension 63*125*100.5mm/2.48*4.92*4.47in
