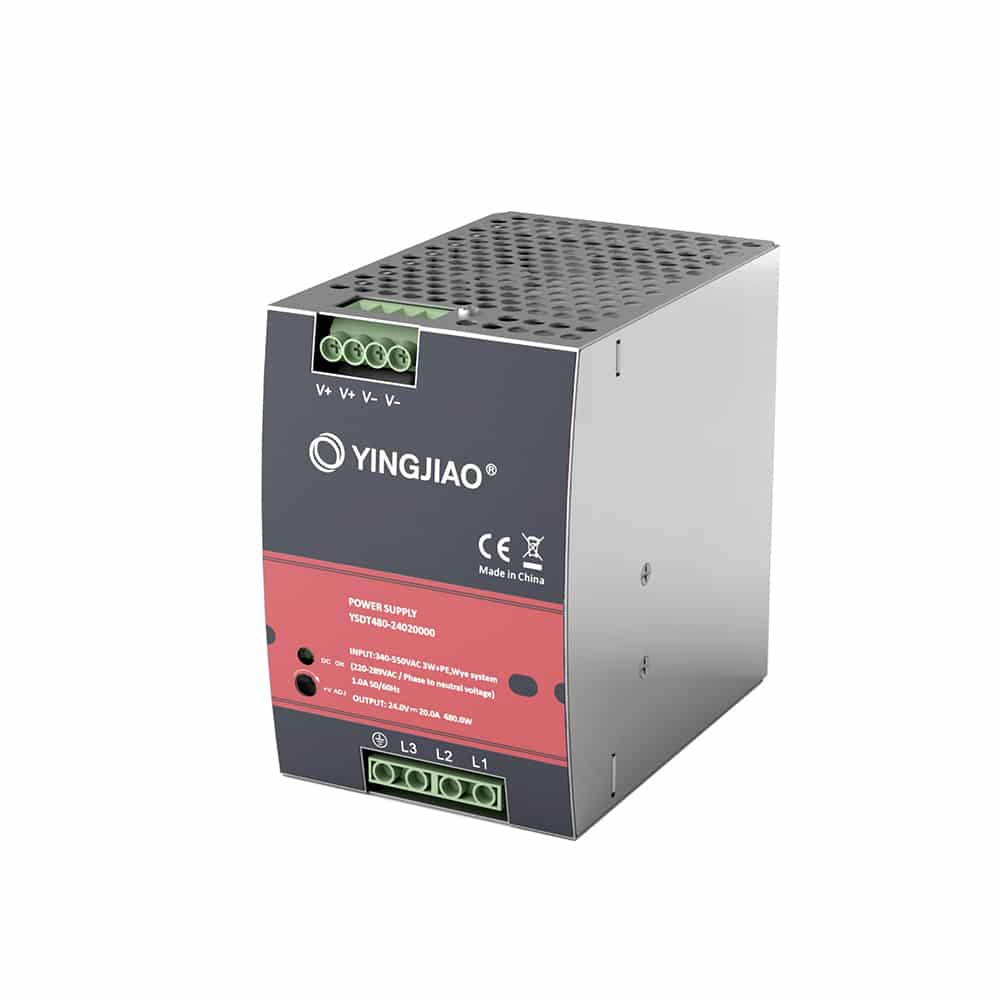

YSDT480 Series

Highlights&Features

  • 3-Phase 340~550VAC wide range input
  • Built-in active PFC function
  • Bulit-in constant current limiting circuit
  • Bulit-in DC OK relay contact
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSDT480-24 YSDT480-48
Input Voltage 340-550VAC
DC Voltage 24V 48V
Rated  Current 20A 10A
Rated  Power 480W 480W
Dimension 85.5*129*125mm/3.37*5.08*4.92in
