3-Phase 340~550VAC wide range input
Built-in passive PFC function
Bulit-in constant current limiting circuit
Bulit-in DC OK relay contact
3 years warranty
Menu
3-Phase 340~550VAC wide range input
Built-in passive PFC function
Bulit-in constant current limiting circuit
Bulit-in DC OK relay contact
3 years warranty

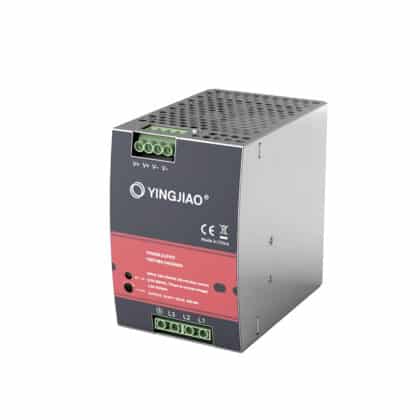

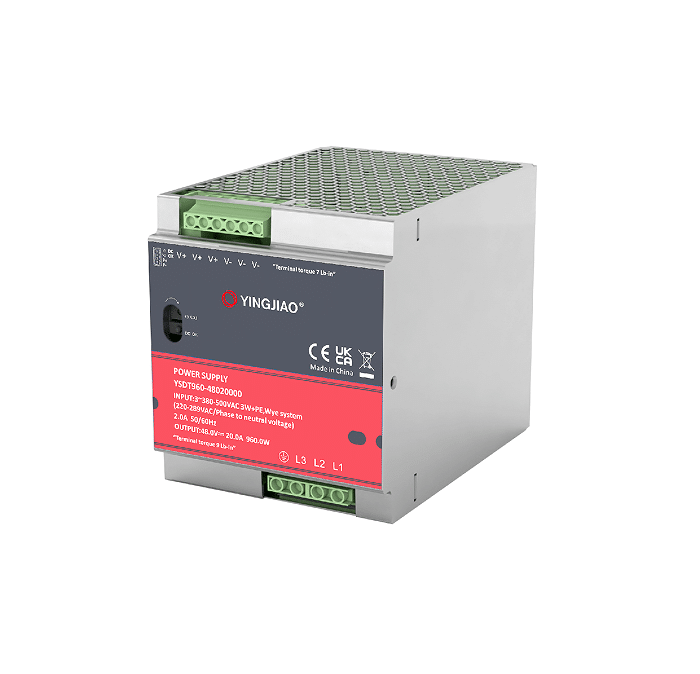

| Model： | YSDT960-24040000 | YSDT960-48020000 |
| DC VOLTAGE: | 24V | 48V |
| Rated Current: | 40A | 20A |
| Rated Power(Max): | 960W | 960W |
| Ripple & Noise(Max): | 180mVp-p | 250mVp-p |
| Input Voltage: | Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC | |
| Inrush Current: | COLD START 60A | |
| Efficiency: | 94% | |
| Working Temperature: | -30 ~ +70℃ (Refer to “Derating Curve”) | |
| Withstand Voltage: | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | |
| Protection: | Short Circuit/Over Load/Over Voltage/Over Temperature | |
| Connection: | I/P :4 poles terminal Block O/P: 6 poles terminal Block | |
