YEL50 50W Series
Universal AC input range
Miniature size and High efficiency
Cooling by free air convection
Protection:Short circuit/Overload/Over voltage
Over voltage category III
100% full load burn-in test
3 years warranty
| Model： | YEL50-5 | YEL50-12 | YEL50-15 | YEL50-24 | YEL50-48 |
| DC VOLTAGE: | 5V | 12V | 15V | 24V | 48V |
| Rated Current: | 10A | 4.16A | 3.33A | 2.08A | 1.04A |
| Rated Power(Max): | 50W | 50W | 50W | 50W | 50W |
| Ripple & Noise(Max): | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p |
| Input Voltage: | 90 ~ 264VAC 127 ~ 370VDC | ||||
| Inrush Current: | 35A at 230V AC | ||||
| Efficiency: | 82% | 85% | 86% | 87% | 89% |
| Working Temperature: | -20 ~ +70℃ (Refer to “Derating Curve”) | ||||
| Withstand Voltage: | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| Protection: | Short Circuit/Over Load/Over Voltage | ||||

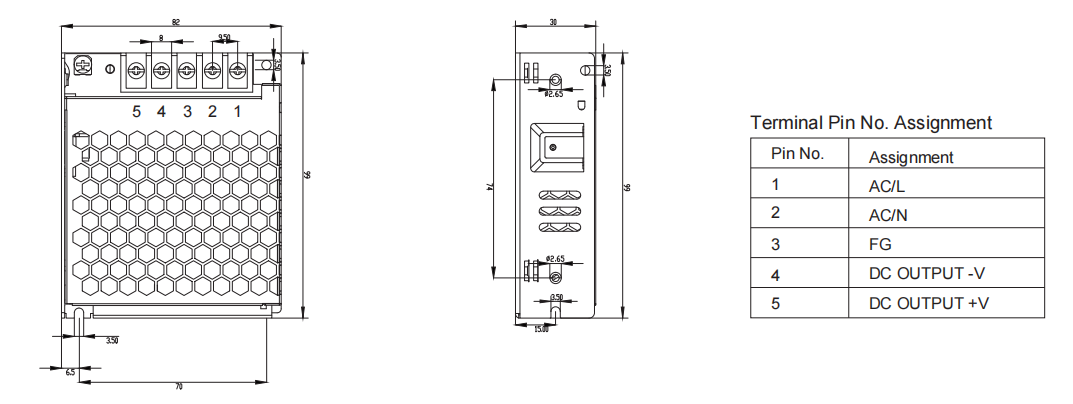

| Connection: | I/P :3 poles terminal Block;0/P: 2 poles terminal Block | ||||
