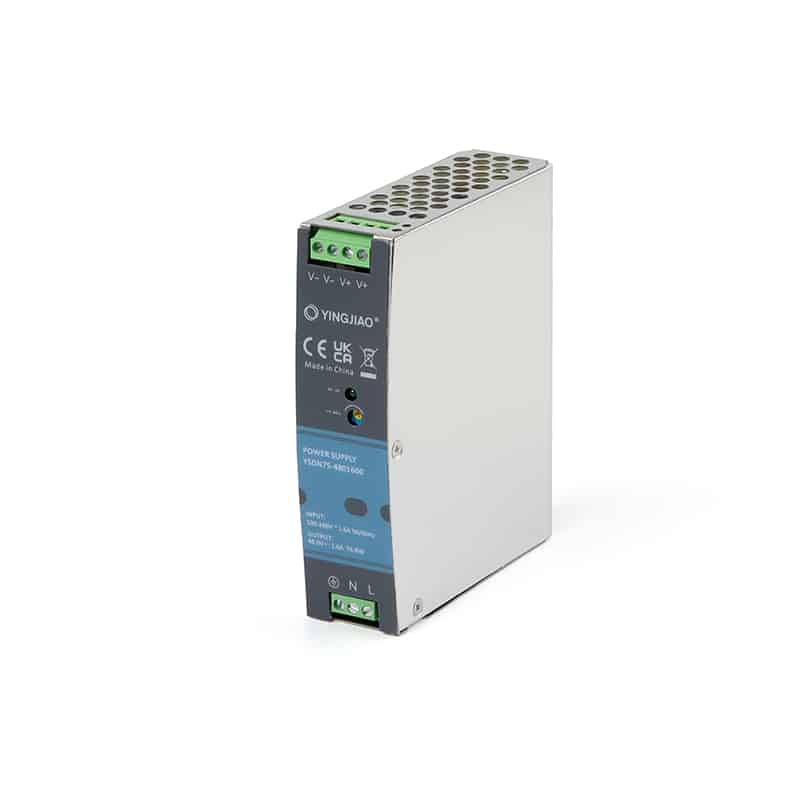

YSDN75 Series

Highlights&Features

  • Universal AC input range
  • DC output voltage adjustable
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSDN75-1206300 YSDN75-2403200 YSDN75-4801600
Input Voltage 90-2640VAC  127-370VDC
DC Voltage 12V 24V 48V
Rated  Current 6.3A 3.2A 1.6A
Rated  Power 75.6W 76.8W 76.8W
Dimension 32*125*100.5mm/1.26*4.92*3.96in
