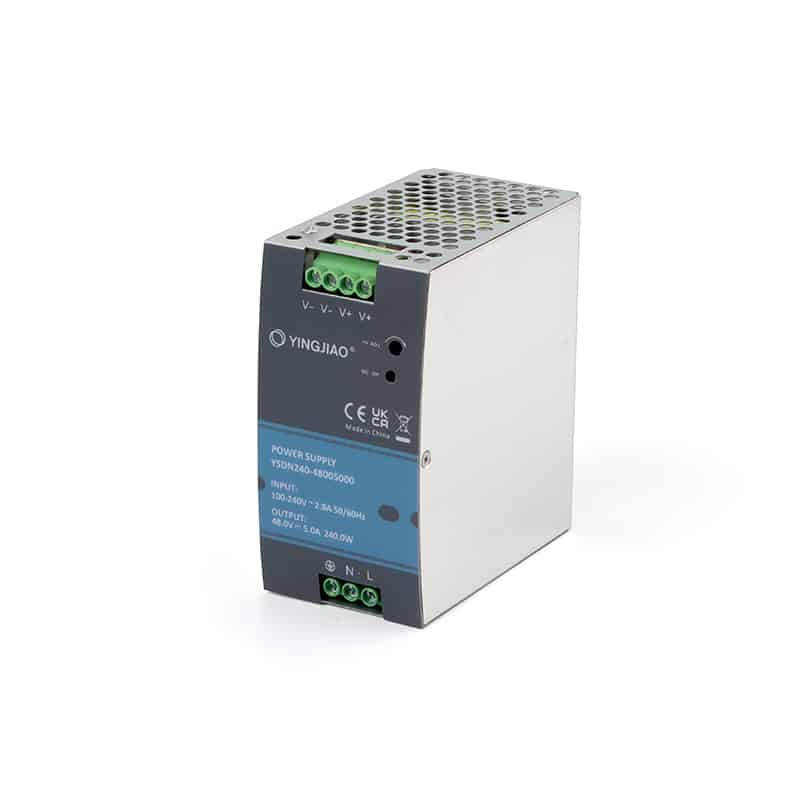

YSDN240 Series

Highlights&Features

  • Universal AC input range
  • Built-in active PFC function
  • DC output voltage adjustable
  • Installed on DIN rail TS-35/7.5 or 15
  • 100% full load burn-in test
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSDN240-24010000 YSDN240-48005000
Input Voltage 90-2640VAC  127-370VDC
DC Voltage 24V 48V
Rated  Current 10A 5A
Rated  Power 240W 240W
Dimension 63*125*113.5mm/2.48*4.92*4.47in
