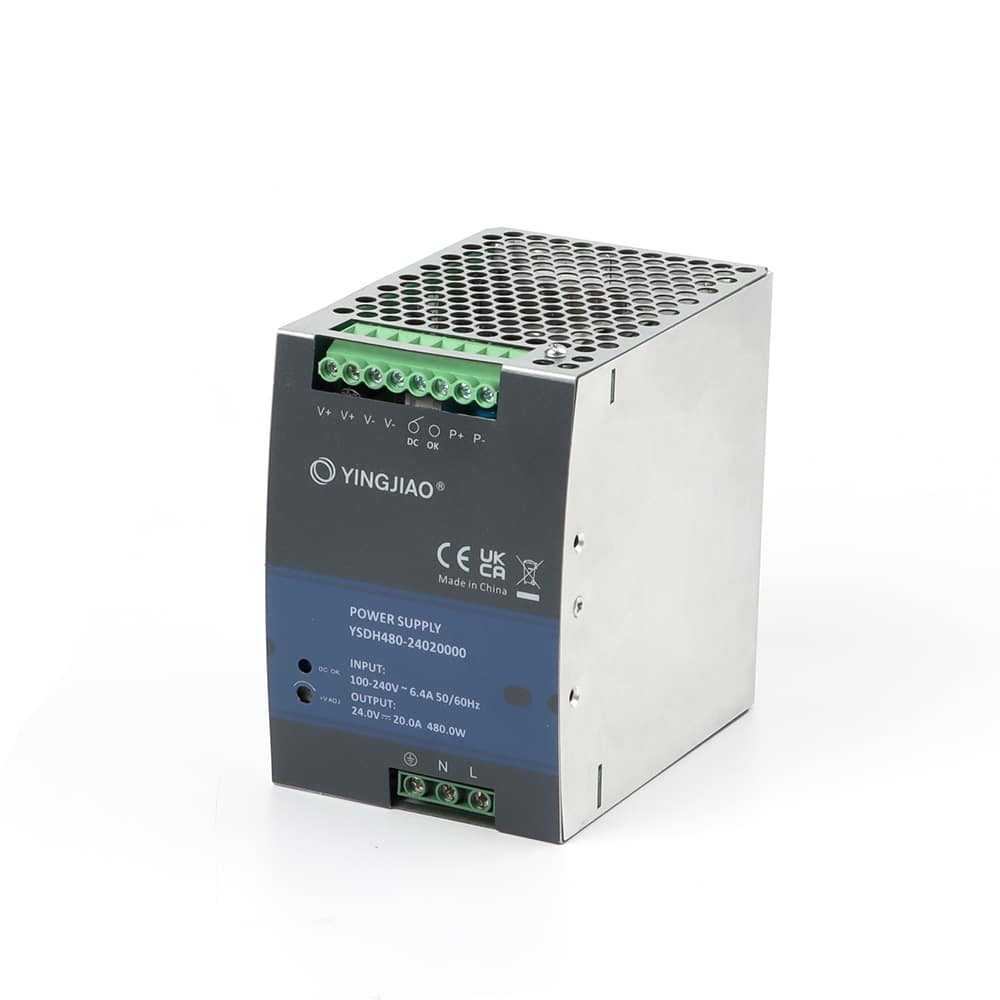

YSDH480 Series

Highlights&Features

  • Current sharing up to 3840W(7+1)
  • Higher peak power
  • Built-in active PFC function
  • Built-in DC OK relay contact
  • DC output voltage adjustable
  • 100% full load burn-in test
  • 3 years warranty





Contact Us →
Datasheet
MODEL NO. YSDH480-24 YSDH480-48
Input Voltage 90-264VAC  127-370VDC
DC Voltage 24V 48V
Rated  Current 20A 10A
Rated  Power 480W 480W
Dimension 85.5*125*129mm/3.37*4.92*5.08in
