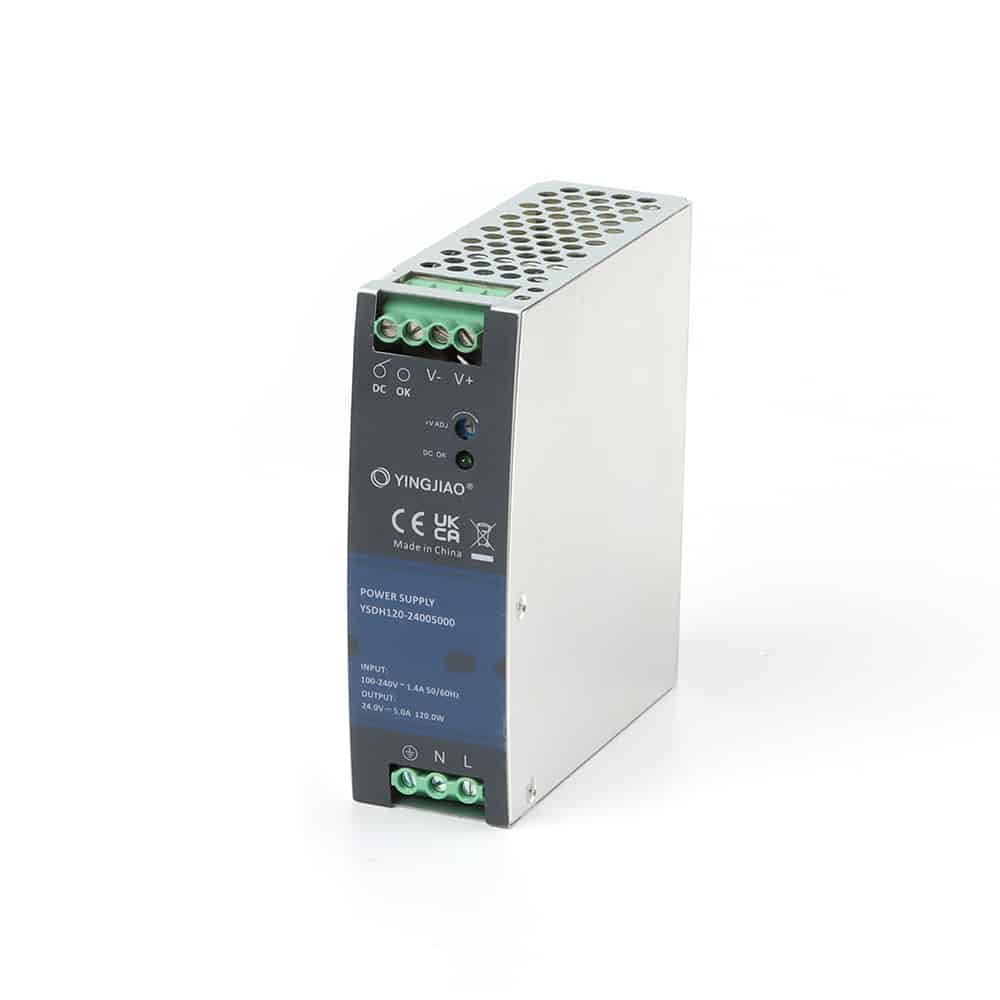

YSDH120 Series

Highlights&Features

  • Higher peak power
  • Built-in active PFC function
  • Built-in DC OK relay contact
  • DC output voltage adjustable
  • 100% full load burn-in test
  • 3 years warranty
Contact Us →
Datasheet
MODEL NO. YSDH120-12 YSDH120-24 YSDH120-48
Input Voltage 90-264VAC  127-370VDC
DC Voltage 12V 24V 48V
Rated  Current 10A 5A 2.5A
Rated  Power 120W 120W 120W
Dimension 40*125*113mm/1.57*4.92*4.45in
