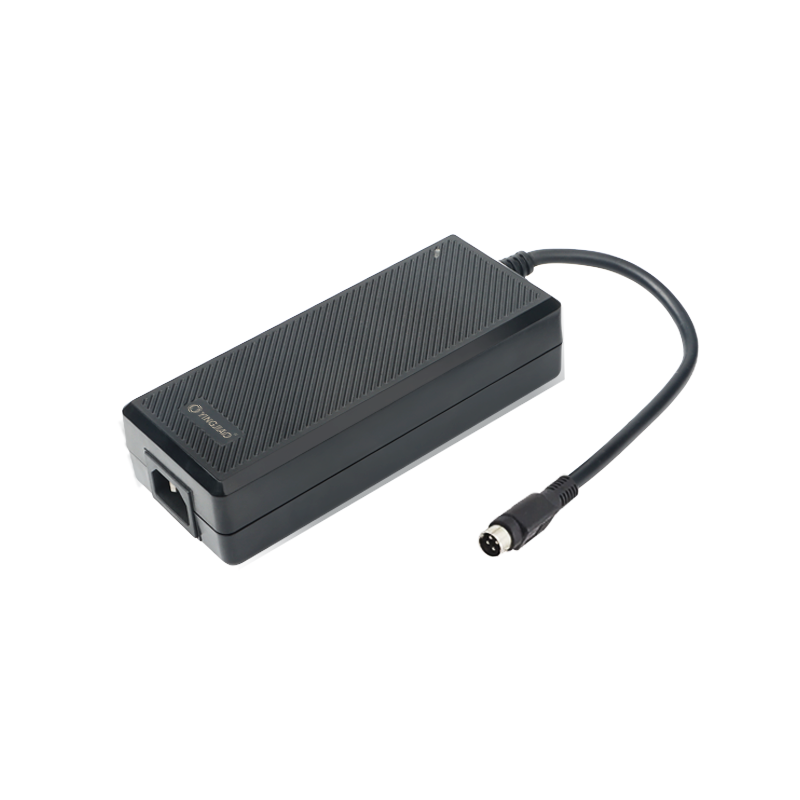

YS125M SERIES
Energy efficiency level Vl
3 Years Warranty
Universal AC input/Full range
No load power consumption < 0.21W
Protections: Short Circuit /Over Load /Over Voltage
-30~+70℃wide range working temperature
90W Desktop Type
YS90M
YS125M SERIES
Energy efficiency level Vl
3 Years Warranty
Universal AC input/Full range
No load power consumption < 0.21W
Protections: Short Circuit /Over Load /Over Voltage
-30~+70℃wide range working temperature
| Model | Order P/N | YS125-12011500M-□-M7B | YS125-15010660M-□-M7B | YS125-19008420M-□-M7B | YS125-24006660M-□-M7B | YS125-48003330M-□-M7B |
| Safety Model No. | YS125-12011500M | YS125-15010660M | YS125-19008420M | YS125-24006660M | YS125-48003330M | |
| Output | DC Voltage | 12V | 15V | 19V | 24V | 48V |
| Rated Current | 11.5A | 10.66A | 8.42A | 6.66A | 3.33A | |
| Rated Power | 138W | 160W | 160W | 160W | 160W | |
| Ripple & Noise(max.) | 100mVp-p | 150mVp-p | 200mVp-p | 300mVp-p | 400mVp-p | |
| Voltage Tolerance | ± 5% | ± 5% | 5% | ± 5% | ± 5% | |
| Line Regulation | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% | |
| Load Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% | |
| Setup,Rise,Hold up Time | 1.0s,15ms,35ms/230VAC(at full load) 1.0s,15ms,25ms/115VAC(at full load) | |||||
| Input | Rated Voltage Range | 100-240VAC | ||||
| Voltage Range | 90-264VAC | |||||
| Frequency Range | 50/60Hz | |||||
| AC Current | 2.0A/115VAC 1.1A/230VAC | |||||
| Inrush Current | Cold Start 60A/200us at 230VAC 50Hz Cold Start 40A/200us at 115VAC 50Hz | |||||
| Leakage Current | <0.1mA/230VAC | |||||
| Efficiency | 89% | 89.5% | 89% | 90.5% | 91.5% | |
| No Load Power Consumption | <0.21W | |||||
