Rated Power: 30W
Input: 100-240V AC, 50 / 60Hz
Standby Power: <0.3W
DC output voltage adjustable
Protection: Short Circuit, OCP, OVP
Output: 5-48V

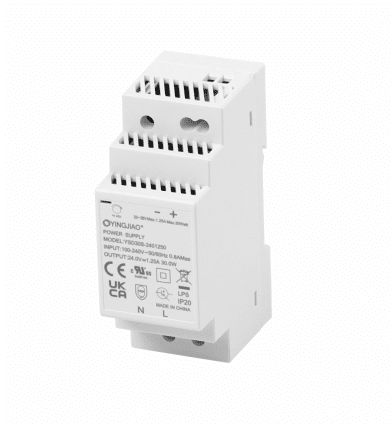

YSD15S Series
YSD15S
Menu
Rated Power: 30W
Input: 100-240V AC, 50 / 60Hz
Standby Power: <0.3W
DC output voltage adjustable
Protection: Short Circuit, OCP, OVP
Output: 5-48V
| MODEL NO. | YSD30S-0503000 | YSD30S-1202500 | YSD30S-1502000 | YSD30S-2401500 | YSD30S-4800630 | |
| Input Voltage | 90-264VAC 127-370VDC | |||||
| DC Voltage | 5V | 12V | 15V | 24V | 48V | |
| Rated Current | 3A | 2.5A | 2A | 1.5A | 0.63A | |
| Rated Power | 15W | 30W | 30W | 36W | 30W | |
| Dimension | 35*90*58mm/1.38*3.54*2.28in | |||||
