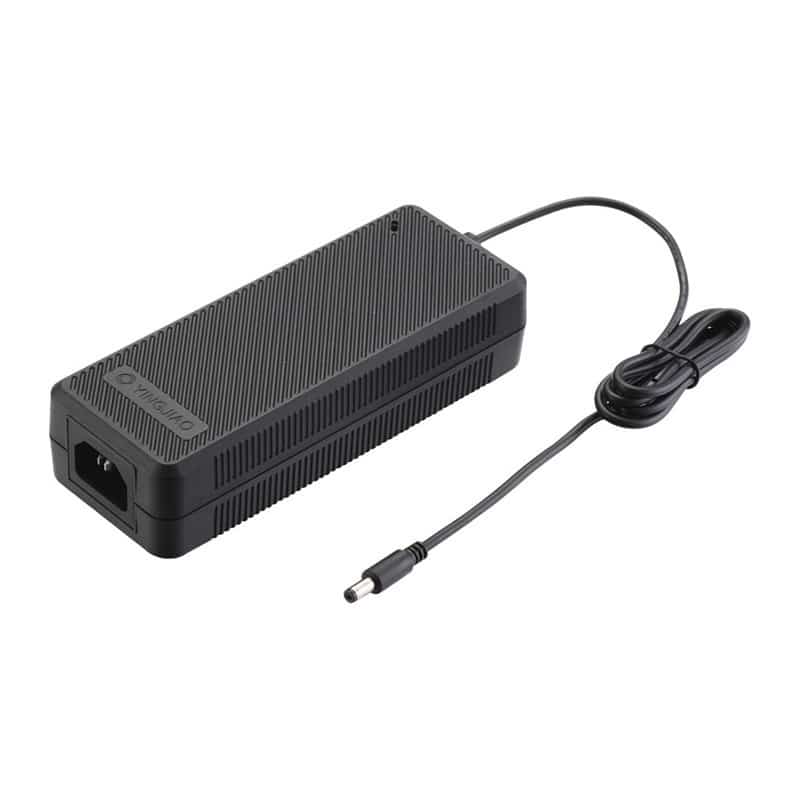

YS125M Series
Rated Power: 160W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.5W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 9-24V
| Model: | YS125-1206000 | YS125-1505000 | YS125-1903900 | YS125-2403125 |
| Power: | 160W | |||
| Input： | AC100-240V | |||
| Output Voltage: | 12V DC | 15V DC | 19V DC | 24V DC |
| Output Current: | 0-6A | 0-5A | 0-3.9A | 0-3.125A |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | |||
| Leakage Current: | ＜100μA | |||
| No Load Power Consumption ： | ＜0.5W | |||
| Protections： | Short Circuit /Over Current /Over Voltage/over temperature protection | |||
| Short Circuit Protection (SCP)： | Protection to Zero Voltage | |||
| Over Voltage Protection (OVP): | ≤Vout*150% | |||
| Over Current Protection (OCP): | 110%-180% | |||
| Withstand voltage: | I/P-O/P 4kVAC | |||
| Working TEMP.: | -20°C-50°C | |||
| EMC standards: | EN55011 class B,EN61000-3-2,3EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN60601-1-2 medical level,FCC Part 15 class B, EAC TP TC 020 | |||
| Safety standards: | ANSI/AAMI ES60601-1/ES60601-1-11,CAN/CSA-C22,TUV EN60601-1-11,EAC TP TC 004 approved | |||
| Dimension: | 155*60*37mm | |||
Input:100-240VAC 50/60Hz
Output Voltage: 5V-30V DC
Rated Power : 75W max.
Features :
1.Univeral AC input/ Full range
2.Medical safty approved(2×MOPP)
3.Leakage Current: ＜100μA
4.Extremely low leakage current
5.Protection:Over load/Over voltage/Short circuit
6.Withstand voltage : 4KV
7.Life Warranty: 3 years
Applications:
– Colour to exceed
– Biochemistry analyzer
– Hematology analyzer
– Plasma collector
– Electrolyte analyzer
– Chemiluminescence immunoanalyzer
